■ High speed controlling
■ End-of-Line production testing

■ Pressure calibration
■ Automotive
■ Oil and Gas

■ Control speed < 4 seconds for 25%FS steps
■ Accuracy: 0.020% FS
■ Range: -1 ... 210 bar (-15 ... 3,045 psi)
■ PACE remote emulation
■ Up to two individual transducer ranges

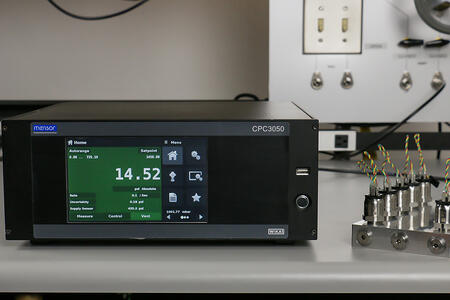

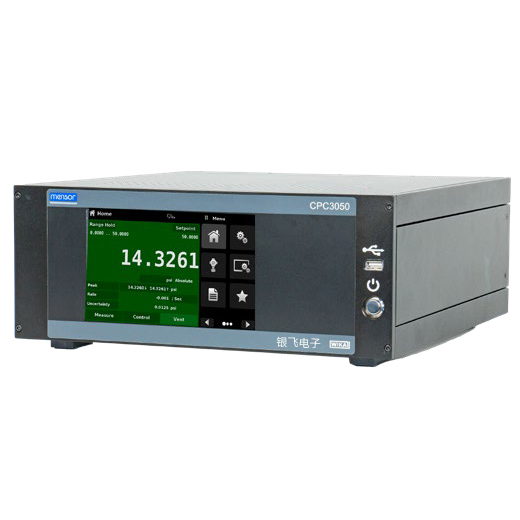

CPC3050的精度为0.020%FS，并使用了专门为高速压力控制设计的调节器技术；非常适合自动化生产和制造线的线端测试。随着速度的提高，0.020%的FS精度为许多为汽车和石油/天然气行业设计的设备提供了足够的校准要求。

功能

CPC3050高速控制器可以通过简单直观的菜单进行本地操作，使用户可以控制和测量压力。此外，它能够通过软件进行远程控制，可以驱动与本地操作相同的所有功能。使用串行、USB、以太网或GPIB，CPC3050可以：

完全设置为在过程中自动运行，并实现制造过程的较佳输出。有了Mensor legacy命令集以及PACE仿真命令，它也可以成为先前定义的远程软件的解决方案。



设计

CPC3050稳健设计的核心是专门为高速压力控制设计的创新调节器。它具有两个可自定义范围的传感器，以及模拟绝对或表压的气压参考选项。其紧凑型机箱可配置到机架的现有设置中，或作为机架安装应用程序的桌面仪器。

标准机箱设计为生产或工程环境中的台式机。为了集成到更自动化的流程中，圆滑的设计适合3U机架安装托盘。除了与许多其他Mensor控制器相同的压力端口布局外，CPC3050还使用了常见的SAE 7/16-20螺纹压力端口，这使得在大多数应用中很容易找到合适的压力适配器。

CPC3050规格参数

Reference pressure transducers model CPR3050
Pressure Range	Low Pressure (LP)8)	High Pressure (HP)7)8)
Accuracy 1)	0.020% FS 2)
Gauge pressure 3)	0 ... 5 up to 1,500 psi (0 ... 0.35 up to 100 bar)	0 ... 1,500 up to 3,045 psi (0 ... 100 up to 210 bar)
Absolute pressure 5)	0 ... 15 up to 0 ... 1,515 psi (0 ... 1 up to 0 ... 101 bar)	0 ... 1,515 up to 3,060 psia (0 ... 101 up to 211 bar)
Bi-directional pressure 3)4)	-2.5 ... 2.5 up to -15 ... 1,500 psi (-0.17 ... 0.17 up to -1 ... 100 bar)	-15 ... 1,500 up to 3,045 psi (-1 ... 100 up to 210 bar)
Calibration interval	365 days
Optional barometric reference
Function	The barometric reference can be used to switch pressure types 6), absolute <=> gauge. With gauge pressure transducers, the measuring range of the transducers must begin with -1 bar (-15 psi) in order to carry out a complete absolute pressure emulation.
Measuring range	8 ... 17 psi abs. (552 ... 1,172 mbar abs.)
Accuracy 1)	0.020% of reading
Pressure units	39 and two freely programmable

■ It is defined by the total measurement uncertainty, with the coverage factor (k = 2) and includes the intrinsic performance of the instrument, the measurement uncertainty of the reference instrument, long-term stability, influence of ambient conditions, drift and temperature effects over the compensated range with recommended zero point adjustment every 30 days..
■ FS = Full Span.
■ Ranges from 1,500 to 3,045 psi will be sealed gauge transducers..
■ The negative portion of a bidirectional range has the same accuracy as the equivalent positive range.
■ The minimum calibrated range of absolute transducers is 600mTorr
■ For pressure type emulation, we recommend a native absolute pressure transducer, since the zero point drift can be eliminated through a zero point adjustment.
■ Minimum primary sensor range must be greater than 1,500/1,515 psi.
■ Secondary range must be within 10:1 ratio of the primary range.

Base Instrument
Instrument
Instrument Version	Standard: desktop case Optional: 19" rack-mounting kit
Dimensions	See technical drawings
Weight	approx. 12.7 kg (28 lbs).
Display
Screen	7.0" color LCD with resistive touchscreen
Warm-up time	approx. 15 min.
Connections
Pressure connections	5 ports with 7/16"-20 F SAE and 1 port with 10-32 UNF female
Filter elements	The instrument has a 40-micron filter on all pressure ports.
Pressure port adapters	Standard: without Optional: 6mm tube, 1/4" tube, 1/4" female NPT, 1/8" female NPT, or 1/8" female BSP
Barometer port adapters	Standard: barb fitting Optional: 6mm tube, 1/4" tube
Permissible pressure media	Dry, clean air or nitrogen (ISO 8573-1:2010 class 5.5.4 or better)
Wetted parts	Aluminum: 6061-T6 / 2024-T4, Stainless Steel: 303 / 304 / 316 / 316L / 13-8 PH, Brass, Nickel, Buna-N, FKM/FPM, Tungsten carbide, Cerazur ceramic, PTFE, PEEK. Glass-filled epoxy, RTV, ceramic, silicone, silicone grease, urethane, 430FR, 300 series CRES.
Over pressure protection	Safety relief valve for regulator 3,600 psi.¹⁾
Permissible pressure
Supply port	110 - 120% FS or 10 psi (0.69 bar), whichever is greater.
Measure/Control port	105% FS primary transducer range

Base Instrument
Plumbing	≥0.11" (2.8 mm) ID for optimal performance
Voltage supply
Power supply	AC 100 ... 120 V, 50/60 Hz; AC 220 ... 240 V, 50/60 Hz
Power consumption	max 150 VA
Permissible ambient conditions
Compensated temperature range	0 to 50 oC (50 to 122 oF)
Operating temperature range	-20 to 70 oC (-4 to 158 oF)
Storage temperature range	-20 to 70 oC (-4 to 158 oF)
Humidity	5 ... 95% r.h. (non -condensing)
Mounting position	Horizontal
Control parameters
Control stability	High Speed: < 0.025% FS primary transducer (Industrial mode: < 0.01% FS primary transducer)
Control modes	Industrial, High Speed (default), and Custom
Control time 7)8)	3-4 s
Control range	0 ... 100% FS
Minimum control pressure 9)	0.025 psi (0.0017 bar) over exhaust pressure or 0.05% FS, whichever is greater.
Overshoot	< 1% FS in High Speed mode (<0.5% FS in Industrial mode)
Test volume	0 ... 1000 cc

5% FS pressure steps in High Speed mode. me includes default stable delay 0.5s.
ow point specification is vacuum region for absolute transducers.
