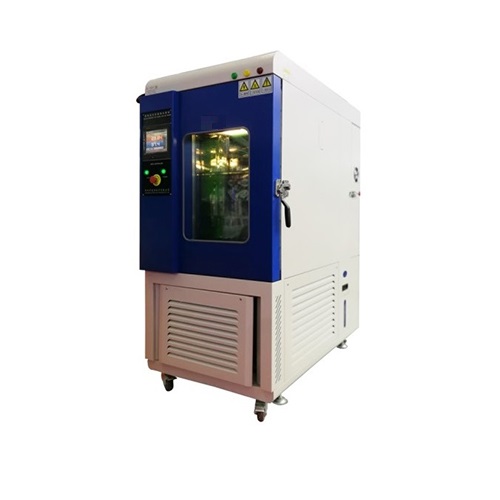

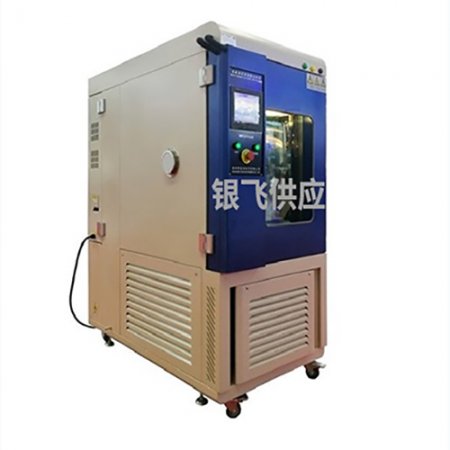

TC-II-480G-L/EX高低温循环试验箱

TC-II-480G-L/EX高低温循环试验箱 用于所有3C电子产品或样品的湿度循环试验,在规定的高温与低温区间范围内,让3C电子产品或样品通过不断的循环承受特定速率的温度变化,以评估试样的耐温度变化的可靠性或去除集聚于电子产品焊接部位的应力。也适用于包括金属、塑料、橡胶、电子元器件等各类材料或汽车电子,航空电子, 军品及消费电子产品。Temperature cycle test chamber using:At a specific temperature and low temperature range, the sample is subjected to temperature ch......

产品描述

TC-II-480G-L/EX高低温循环试验箱用于所有3C电子产品或样品的湿度循环试验,在规定的高温与低温区间范围内,让3C电子产品或样品通过不断的循环承受特定速率的温度变化,以评估试样的耐温度变化的可靠性或去除集聚于电子产品焊接部位的应力。也适用于包括金属、塑料、橡胶、电子元器件等各类材料或汽车电子,航空电子, 军品及消费电子产品。Temperature cycle test chamber using:At a specific temperature and low temperature range, the sample is subjected to temperature changes at a particular rate and through constant cycles; To reliability evaluation of sample resistance to temperature change or remove the stress of the welded parts gathered in electronic products. Applicable to metal and plastic, rubber, electronic components and other kinds of materials or automotive electronics, avionics, military and consumer electronic products。
TC-II-480G-L/EX

TC-II-480G-L/EX高低温循环试验箱使用操作说明书

容量:408L;
内部尺寸:W60*H85*D80cm;
温度测试范围:-70℃至+150℃;
升降温速率:线性1.0-15.0℃/min可斜率设定

TC-II-480G-L/EX高低温循环试验箱规格使用说明书

型号 Model No. TC-II-160G-L/E“X” TC-II-408G-L/E“X” TC-II-1000G-L/E“X”
内容积 Internal volume(L) 160 408 1000
内箱尺寸 Internal size W×H×D 80*50*40 85*80*60 100*100*100
外部尺寸 External size W×H×D 100*183*198 105*183*220 120*203*220
温度范围 Temperature range G:-70℃~+150℃;
温度均匀度 Temperature uniformi ≤2℃
温度偏差 Temperature deviation ±2.0℃
升降温速率 Heating /cooling rate 1~25°C/min can be customized
“X” routine is 5°C/min;10°C/min;15°C/min,20°C/min,others can customized; L“X”:Linear “X”; E“X”:Everage“X”;
保护装置 Protect device 整机防触电,漏电保护,压缩机过压过流保护,压缩机压力超限保护,加热器的超温保护, 空气循环马达故障保护,冷却装置故障保护;The electric shock proof safety leakage protection compressor over-voltage and over-current protection, compressor pressure overload protection, over-temperature protection heater, air circulating motor fault protection
TC-II-480G-L/EX高低温循环试验箱采用公司自行研发的专利技术-节能型温度循环试验测控系统,整机能耗与同行传统控制方式相比,整机正常运行能耗节约电能 30%;II 型全系列产品采用韩国原装进口的温度控制器硬件和自行开发的电气控制系统;设备控温精准;运行平稳可靠(单次无故障连续运行 2400 小时以上;整机运行寿命达100000 小时以上);Energy-saving performance:Using the company's own patented technology "temperature energy saving control system (patent number:0970592)", energy consumption compared to the traditional control methods, energy savings of 30%.Excellent control stability and reliability:Type II series products adopt imported Korean temperature controller + self-developed electrical control system; The equipment of temperature control precision is high; It’s operation is stable and reliable (single continuous trouble-free operation is more than 2400 hours; equipment life is up to 100000 hours)。
