TOS5200五仟伏直流耐压测试仪具有PWM放大器系统提供高稳定的输出 ，5kV/100mA（500VA）交流Hipot（耐压）测试，高精度测量1.5%读数（电压表500V或更高，电流表1mA或更高），上升/下降时间控制，钥匙锁定功能和钥匙操作保护罩，配备RS-232C/USB接口。 TOS5200设计用于交流Hipot测试 ，具有500VA容量和200mA短路电流输出能力。TOS5200采用PWM放大器，输出稳定可靠，不受交流电源线的影响。因此，它是符合IEC、EN、UL、VDE和JIS等要求的电子设备或器件的完美解决方案。 日......
产品描述
TOS5200五仟伏直流耐压测试仪具有PWM放大器系统提供高稳定的输出，5kV/100mA（500VA）交流Hipot（耐压）测试，高精度测量±1.5%读数（电压表500V或更高，电流表1mA或更高），上升/下降时间控制，钥匙锁定功能和钥匙操作保护罩，配备RS-232C/USB接口。TOS5200设计用于交流Hipot测试，具有500VA容量和200mA短路电流输出能力。TOS5200采用PWM放大器，输出稳定可靠，不受交流电源线的影响。因此，它是符合IEC、EN、UL、VDE和JIS等要求的电子设备或器件的完美解决方案。
TL32-TOS
HP01A-TOS
HP02A-TOS
RC01-TOS
RC02-TOS
DD-5P/9P
TU01-TOS
PL02-TOS
文章来源于测试仪器
日本菊水在50多年的市场经验基础上，研发生产实现了低成本的理想交流Hipot测试仪，由于TOS5200直流耐压测试仪5KV涵盖了我们用于交流Hipot测试的高级模型的大部分功能，对于需要200VA或500VA容量的用户，或同时需要这两种容量的用户，它达到了超高的性价比。此外，由于它配备了联锁功能和其他安全功能，操作员可以在安全的情况下进行更高电流值的测试。
TOS5200直流耐压测试仪5KV特征
施加电压的上升/下降时间控制功能
[配备上升/下降时间控制功能]
防止对EUT或标准试验施加过大的应力。
高稳定输出
[新开发的高效率PWM开关放大器！]
提供稳定的高压输出而不受交流线路变化的影响。确保用户有信心进行高可靠性测试，即使是在电压变化较大的地区。（输入电压波动率：±0.3%）
高精度高分辨率
[±1.5%读数*]
高精度测量±读数的1.5%
*（电压表500 V或更高，电流表1 mA或更高）
减少接触时间
[提高生产力！]
能够将测试时间设置为0.1秒
支持全球范围的输入电压
[通用性！/可选择的输出频率！]
可在任何国家使用，无需改变输入电源。不依赖输入电源环境。它提供50/60赫兹频率的稳定测试电压。
追求可用性和安全性
[全新智能设计的控制面板和输出端子！]
[全新智能设计的控制面板和输出端子！]
消除了输出端子的突出部分，并配备了一种新型的低端端子。追求提高生产线的安全性和便利性，如为前面板提供保护罩。

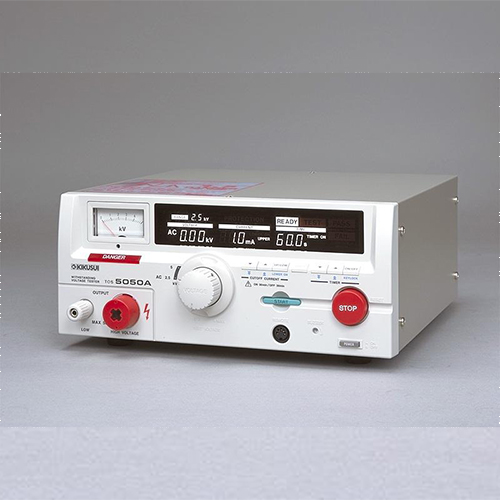

TOS5200替代TOS5050A 参数对比区别
| Specification comparison item | TOS5200 | TOS5050A | |
|
Test voltage |
Output method | PWM switching amp system | Slide transformer method |
| Distortion | 3 % or less | As per commercial power supply waveform | |
| Frequency | 50 Hz or 60 Hz | Synchronized with commercial power supply waveform | |
| Output voltage waveform | Sine | Commercial power supply waveform | |
| Voltage regulation | 10 % or less | 15 % or less | |
| Input voltage variation | ±0.3 % | - | |
|
Test time |
Minimum setting value | 0.1 s | 0.5 s |
| Accuracy | ±(100 ppm + 20 ms) excluding Fall Time | ±(100 ppm + 20 ms) | |
|
Judgment feature |
Upper limit setting | AC: 0.01 mA to 110 mA | AC: 0.1 mA to 110 mA |
| Lower limit setting | AC: 0.01 mA to 110 mA | AC: 0.1 mA to 110 mA | |
| Accuracy |
1.00 mA ≤ i: ±(1.5 % of set), i <1.00 mA: ±(1.5 % of set +30 μA) |
Upper limit: ±(5 % + 20 μA) | |
| Rise Time and Fall Time control features | 3 | - | |
|
Voltmeter |
Display | Digital | Digital, analog |
| Measurement accuracy | ±1.5 % of reading (V>500V) | ±1.5 % f.s | |
| Voltmeter/Ammeter | Measurement method | True rms/mean-value | Mean-value/rms value |
| RS232C Interface | POWER Switch and all function except Key lock | Output for data, test result | |
| Weight | Approx. 14 kg (30.9 lbs) | Approx. 15 kg (33.07 lbs) | |
| Other | Input power supply | 100 Vac to 240 Vac | 100 V ± 10 % |
|
Appearance |
|
|
|
TOS5200直流耐压测试仪5KV选配件

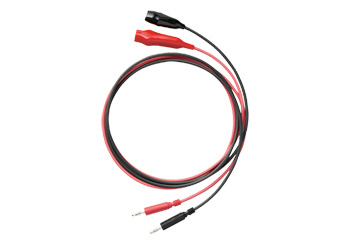

TL31-TOS
Option(s) for Electrical Safety Testers
High-voltage test lead for TOS53XX, 1.5m (5kV Max.)
High-voltage test lead for TOS53XX, 1.5m (5kV Max.)

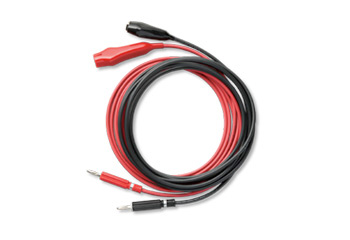

TL32-TOS
Option(s) for Electrical Safety Testers
High-voltage test lead for TOS53XX, 3m (5kV Max.)
High-voltage test lead for TOS53XX, 3m (5kV Max.)

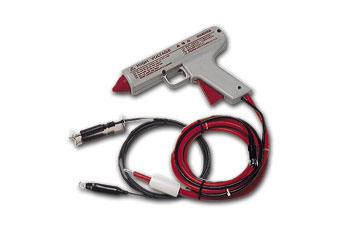

HP01A-TOS
Option(s) for Electrical Safety Testers
High-voltage test probe, Cable Length 1.8m (AC4kV,DC5kV Max.) , Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX
High-voltage test probe, Cable Length 1.8m (AC4kV,DC5kV Max.) , Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX
HP02A-TOS
Option(s) for Electrical Safety Testers
High-voltage test probe, Cable Length 3.5m (AC4kV,DC5kV Max.), Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX
High-voltage test probe, Cable Length 3.5m (AC4kV,DC5kV Max.), Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX

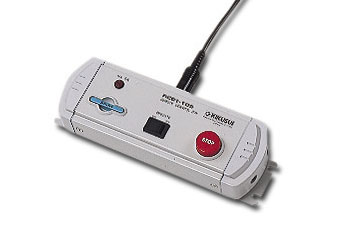

RC01-TOS
Option(s) for Electrical Safety Testers
Remote control box (For one hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX
Remote control box (For one hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX

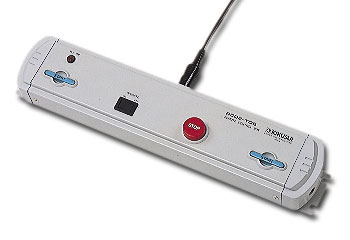

RC02-TOS
Option(s) for Electrical Safety Testers
Remote control box (For both-hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX
Remote control box (For both-hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX
DD-5P/9P
Option(s) for Electrical Safety Testers
Conversion cable(DIN to Mini DIN) for connecting the remote control box (RC01-TOS or RC02-TOS) or high-voltage test probe (HP01A-TOS or HP02A-TOS ) with TOS53XX,TOS93XX
Conversion cable(DIN to Mini DIN) for connecting the remote control box (RC01-TOS or RC02-TOS) or high-voltage test probe (HP01A-TOS or HP02A-TOS ) with TOS53XX,TOS93XX
TU01-TOS
Option(s) for Electrical Safety Testers
The TU01-TOS is a terminal unit that converts the 25 pin SIGNAL I/O connector of the Kikusui TOS5300/ 5301/ 5302 Withstanding Voltage Tester to the 14 pin SIGNAL I/O connector of the TOS5050A/ 5051A. You can insert this unit between a controller and a TOS5300/ 5301/ 5302 to perform the same external control that you can perform on the TOS5050A/ 5051A.
The TU01-TOS is a terminal unit that converts the 25 pin SIGNAL I/O connector of the Kikusui TOS5300/ 5301/ 5302 Withstanding Voltage Tester to the 14 pin SIGNAL I/O connector of the TOS5050A/ 5051A. You can insert this unit between a controller and a TOS5300/ 5301/ 5302 to perform the same external control that you can perform on the TOS5050A/ 5051A.
PL02-TOS
Option(s) for Electrical Safety Testers
Warning light unit for only TOS9200/TOS9201/TOS93XX
Warning light unit for only TOS9200/TOS9201/TOS93XX
KRA4-TOS
Rack Adapter
Rack adapter (Inch size) *Applicable model name: TOS53XX
Rack adapter (Inch size) *Applicable model name: TOS53XX
KRA200-TOS
Rack Adapter
Rack adapter (Metric size) *Applicable model name: TOS53XX
Rack adapter (Metric size) *Applicable model name: TOS53XX
TOS5200直流耐压测试仪5KV规格参数表
|
AC Output section |
Output range | 0.05 kV to 5.00 kV | ||
| Setting accuracy | ± (2 % of set + 20 V) [at no load] | |||
| Setting range | 0.00 kV to 5.50 kV | |||
| Resolution | 10 V STEP | |||
| Max. rated output *1 | 500 VA (5 kV/100 mA) | |||
| Max. rated voltage | 5 kV | |||
| Max. rated current | 100 mA [output voltage 0.5 kV or higher] | |||
| Transformer rating | 500 VA | |||
| Output voltage waveform *2 | Sine | |||
| Distortion | If the output voltage is 0.5 kV or more: 3 % or less (when no load or a pure resistive load is connected) | |||
| Crest factor | Within √2 ± 3 % (output voltage 800 V or higher, at no load) | |||
| Frequency | 50 Hz or 60 Hz | |||
| Accuracy | ± 0.5 % (excluding during voltage rise time) | |||
| Voltage regulation | 10 % or less (when changing from maximum rated load to no load) | |||
| Input voltage variation | ±0.3 % (5 kV when no load is connected; power supply voltage: 90 V to 250 V) | |||
| Short-circuit current | 200 mA or more (when the output voltage is 1.0 kV or greater) | |||
| Output method | PWM switching | |||
| Start voltage | The voltage at the start of withstanding voltage tests can be set to 50 % of the test voltage. | |||
| Limit voltage | The test voltage upper limit can be set . AC: 0.00 kV to 5.50 kV | |||
|
Output voltage monitor feature |
If output voltage exceeds the specified value + 350 V or is lower than the specified value - 350 V, output is turned off, and protective features are activated. | |||
|
Voltmeter |
Digital |
Measurement range | 0.000 kV to 6.500 kV AC | |
| Display | □.□□□ kV | |||
| Accuracy | V < 500 V: ± (1.5 % of reading + 20 V), V ≥ 500 V: ±1.5 % of reading | |||
| Response *3 | True rms, Average value response/rms display switchable | |||
| Hold feature | After a test is finished, the measured voltage is retained until the PASS or FAIL judgment is cleared. | |||
|
Ammeter |
Digital |
Measurement range | 0.00 mA to 110 mA | |
|
Display |
i = measured current | |||
| Accuracy *4 | 1.00 mA ≤ i: ± (1.5 % of reading), i < 1.00 mA: ± (1.5 % of reading + 30 μA) | |||
| Response *3 | True rms/ Mean-value response rms display Can be switched | |||
| Hold feature | After a test is finished, the measured current value is retained until the PASS judgment is cleared. | |||
|
Judgment feature |
Judgment method and judgment operation |
• If PASS HOLD is enabled, the PASS signal is generated continuously until the TOS5300 Series receives a STOP signal. • The UPPER FAIL and LOWER FAIL signals are generated continuously until the TOS5300 Series receives a STOP signal. • The FAIL and PASS buzzer volume levels can be changed. • For PASS judgments, the length of time that the buzzer sounds for is fixed to 0.2 seconds. Even if PASS HOLD is enabled, the buzzer turns off after 0.2 seconds. |
||
| Upper limit setting | 0.01 mA to 110 mA | |||
| Lower limit setting | 0.01 mA to 110 mA / OFF | |||
| Judgment accuracy *4 | 1.00 mA ≤ i: ± (1.5 % of set), i < 1.00 mA: ± (1.5 % of set + 30 μA) | |||
| Current detection method | Calculates the current’s true rms value and compares this value with the reference value | |||
| Calibration | Calibrated with the rms of a sine wave using a pure resistive load | |||
|
Time |
Voltage rise time | 0.1 s to 10.0 s | ||
| Resolution | 0.1 s | |||
| Voltage fall time | 0.1 s / OFF (only enabled when a PASS judgment occurs) | |||
| Test Time | 0.1 s to 999 s, can be turned off (TIMER OFF) | |||
| Resolution | 0.1 s to 99.9 s: 0.1 s/100 s to 999 s: 1 s | |||
| Accuracy | ±(100 ppm + 20 ms) excluding Fall Time | |||
