ACR-3-S120KIT Description

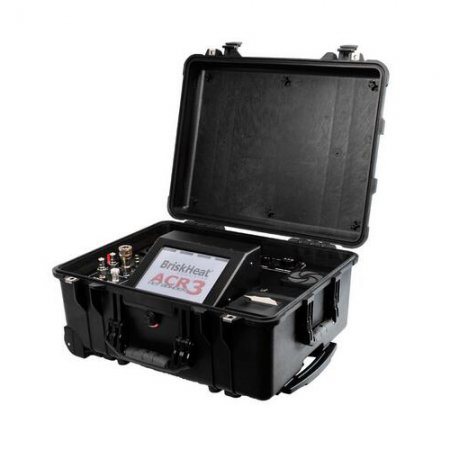

BriskHeat® ACR®3 Hot Bonder is the world’s most complete, all-in-one equipment to control localized heat sources for a wide variety of manufacturing and composite repair applications such as debulk and cure resins, prepregs, adhesives, fibers, and more. This equipment controls the heat and vacuum for on-the-spot composite and metal bond repairs / cures. Our Composite Bonder systems are portable and self-contained; allowing mobility for in the field repairs.
银飞 company sells ACR-3-S120KIT HOT BONDER
| Number of Zones | Voltage | Part Number | NSN* |
| 1 | 120VAC | ACR-3-S120KIT | 4920-01-538-9296 |
|
General
Single
8.4" (213mm) touch-screen with easy-to-use interface
USB port for data transfer (USB flash disk included)
Input ground fault interrupter breaker protected
Audible and visual alarms for high and low temperature / vacuum limits
Data logs digitally or through built-in printer : prints and records real-time status of cure including program parameters
|
|||
ACR 3 Hot Bonder Kit with Heaters includes:
ACR®3 hot bonder unit
One 10"x10" (254x254mm) SR composite heat curing blanket per zone
One 12"x12" (305x305mm) SR composite heat curing blanket per zone
One 16"x16" (406x406mm) SR composite heat curing blanket per zone
10ft (3m) vacuum hoses (2 per zone)
10ft (3m) input power cord (1 per zone)
5ft (1.5m) heater output power cord (1 per zone)
USB flash disk
J-type thermocouples (10 per zone)
Standard connector adapters for thermocouple receptacles (10 per zone)
Vacuum bag feed-throughs (2 per zone)
Extra printer ribbon and paper (1 per zone)
DVD Training Video
OVERVIEW
PRODUCT HIGHLIGHTS
Perform Cures Faster and Better
Single or dual zone
8.4" (213mm) full-color touch-screen
Dual vacuum system: Built-in electric vacuum pump and vacuum venturi for each zone
Universal voltage: 100-130VAC, 200-240VAC
30 amps output per heat zone
10 thermocouple sensors per zone
Accepts J-type thermocouples
Includes everything you need – Training DVD
Easy-To-Use Software on a Full-Color HD Touchscreen
Quick 3-step programming: Stores up to 30 programs on hot bonder
Easy-to-follow menu choices
Quick and easy data entry: Uses simple drop-down menus and a familiar QWERTY keyboard interface
Secure: Multiple levels of password protection
Upgradeable
Multi-task: Perform several operations at once
Retains history of last 12 cures
Customized post cure analysis: Data logging intervals 1 to 99 minutes
Multiple language support: English, German, Russian, Chinese (Mandarin)
Transfer and archive post cure data history to your PC
Instantaneously analyze your data on your spreadsheet and word processor programs including Microsoft® Excel® and Word®
Transfer your programs quickly from one bonder to another
Update your hot bonder easily with the latest software version for FREE.
Fast and Simple Data Transfer with USB Drive (USB Flash Disk Included)
Transfer and archive post cure data history to your PC
Instantaneously analyze your data on your spreadsheet and word processor programs including Microsoft® Excel® and Word®
Transfer your programs quickly from one bonder to another
Update your hot bonder easily with the latest software version for FREE.
