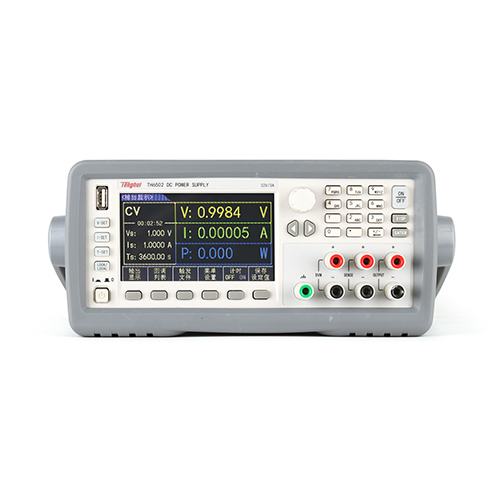

TH6502 Single Channel Linear programmable DC Power Supply 32V/3A/96W.Tonghui TH6500 series high-precision programmable DC power supplies cover 6 models (96W-216W), and its most prominent advantage is its ultra-high precision and resolution, and extremely fast voltage rise speed. The instrument has a built-in voltmeter and ohmmeter, which is convenient for users to test external voltage and resistance.TH6500 series can be used in various areas, such as R&D and design verification common test, production line table routine testing and maintenance, automated device integration testing, solar photovoltaic simulation test, new power car simulation test, and teaching laboratory etc.

DESCRIPTION

Features

■24-bit color 4.3-inch color LCD display

■LCD resolution 480*272

■Numeric keypad operation

■Low ripple and low noise

■Intelligent fan control to save energy and reduce noise

■Software monitoring via computer

■Editable voltage and current output waveform with time(resolution 1ms) (LBT mode)

■The power output can be turned on and off by an external signal

■The knob can be used to coarsely adjust and fine tune the voltage and current values.

■High accuracy and resolution: 0.1mV/0.01mA

■Tiing output time can be set (0.01-9999.99S)

■Screen information can be stored in the USB flash drive

■Chinese and English user interface

■Flexible and convenient file operating system

■Built-in 5 1/2 digital milliohm meter

■Automatic upgrade of instrument operating software via USB HOST

■Handler interface for online operations

■RS232, USB HOST, USB Device, GPIB can easily realize the data communication with PC and remote control of the instrument

■Comes with hardware OVP, OCP protection(OCP is software protection)

■Front panel and rear panel with output and sampling terminals,voltage and resistance measuring terminal

■Support standard SCPI and MODBUS communication protocols

Application

■R & D and design verification common test

■Production line table routine testing and maintenance

■Automated device integration testing

■Solar photovoltaic simulation test

■New power car simulation test

■Teaching laboratory



CHARACTERISTICS

Type：AC/DC

Output：variable-output

Other characteristics：programmable, digital, benchtop, linear, laboratory

Power：96 W

Output voltage：Max.: 32 V

                           Min.: 0 V

Current：Max.: 3 A

               Min.: 0 A



Key Features

■Linear, programmable output design

■High precision and high stability, low ripple and low noise

■Intelligent fan control to save energy and reduce noise

■Editable voltage and current output waveform with time (resolution 1ms)

■Timing output time can be set (0.01-9999.99S)

■Built-in 5 1/2 digital milliohm meter

■Software control and detection via computer

■Comes with hardware OVP, OCP protection

■1/2 2U super mini size and output and sampling terminal on the front and rear panel

Model		TH6501	TH6502	TH6503
Rated Output	Voltage	0-20V	0-32V	0-72V
	Current	0-5A	0-3A	0-1.5A
	Power	100W	96W	108W
Load Regulation	Voltage	≤0.01%+2mV
	Current	≤0.05%+1.5mA
Power Regulation	Voltage	≤0.01%+1mV
	Current	≤0.05%+1mA
Set Value Resolution	Voltage	1mV
	Current	0.1mA
Read-back Resolution	Voltage	0.1mV
	Current	0.01mA
Year Set Accuracy (25℃±5℃)	Voltage	≤0.03%+3mV
	Current	≤0.05%+2mA
Year Read-back Accuracy (25℃±5℃)	Voltage	≤0.02%+3mV
	Current	≤0.05%+2mA
Ripple and Noise (20Hz-20MHz)	Differential Mode Voltage	≤3mVp-p and 1mVrms
	Differential Mode Current	<3mArms
Dynamic Recovery Time (50%-100% LOAD) Restore Time within 75mv		<200us
Rise Time	10%-90%	<20ms
Fall Time	90%-10%	<200 ms	<250 ms	<150 ms
Overvoltage Protection	Range (Typical)	1-19V	1-31V	1-71V
	Accuracy (typical)	± (set value *0.5%+0.5V)
	Response Time (typical)	<10ms
DVM(DC)	Display Value Accuracy	±0.02%+10mv
	Display Resolution	0.1mv
	Input Differential Mode Voltage Range	0-40Vpk
	Input Common Mode Voltage Range	0-30Vpk
