英国Seaward Cropico DO5000数字微欧计

带温度补偿的台式数字微米计

- 高精度0.03%，8个量程，3毫欧至30千欧

- 可调电流范围10uA-10A

- 数据记录和统计分析



DO5000微欧级计是一款真正卓越的仪器，非常适合样品的实验室测试、生产线测试，并且通过添加RS232或PLC接口，DO5000可以远程控制。自动温度补偿和Hi / Lo限制允许以最小的麻烦对组件进行分拣。所有这些选项都包含在基本单元中，以及可存储多达 4000个带有日期和时间戳的读数的数据记录功能。通过对这些值的统计分析，可以显示最大值/最小值/平均值以及峰峰值和标准偏差。DO5000甚至可以以欧姆/米为单位计算电缆长度。

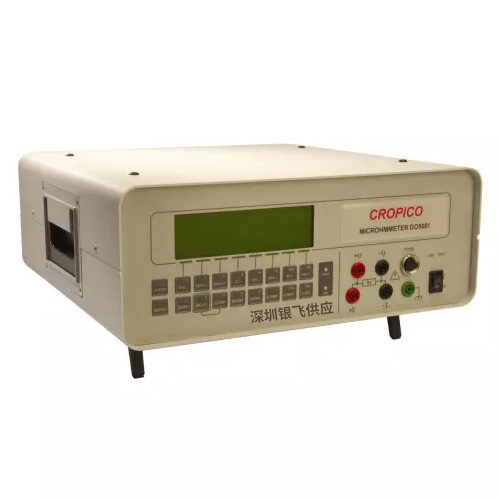

Cropico DO5000

A bench digital microhmmeter with temperature compensation

- High accuracy 0.03%, 8 ranges, 3 milliohms to 30 kilohms

- Adjustable current ranges 10uA-10A

- Data logging with statistical analysis



The DO5000 microhmmeter is a truly remarkable instrument and ideally suited for laboratory testing of samples, for production line testing, and with the addition of the interfaces RS232 or PLC, the DO5000 may be remotely controlled. Automatic temperature compensation and Hi / Lo limit permits sorting of components with the minimum of fuss. All these options are included in the basic unit as well as a data logging function which stores up to 4000readings with date and time stamp. Statistical analysis of these values allows you to display the max / min /average values as well as peak to peak and standard deviation. The DO5000will even calculate cable lengths in ohms/metre.

Cropico DO5000系列微欧姆表区别

Features	DO5000	DO5001	DO5002
真正的4端子测量消除了引线电阻误差 True 4 terminal measurement eliminates lead resistance errors	√	√	√
测量范围从3毫欧到30千欧 Measuring range from 3 milli ohm to 30kilo ohm	√	√	ㄨ
测量范围从200毫欧到30千欧 Measuring range from 200milli ohm to 30kilo ohm	ㄨ	ㄨ	√
10微欧分辨率/10micro ohm resolution	ㄨ	ㄨ	√
100纳欧分辨率/100nano ohm resolution	√	√	√
真正的零能力/True zero capabilities	√	√	√
数字校准/Digital Calibration	√	√	√
具有可编程系数的自动温度补偿 Automatic temperature compensation with programmable coefficients	√	√	√
开路引线警告 LED Open circuit lead warning LED	√	√	√
电流范围从10mA到10A Current range from 10mA to 10A	√	√	ㄨ
电流范围从10微安培到10mA Current range from 10micro Amp to 10mA	ㄨ	ㄨ	√
可编程测量电流10%至100%，步长为1% Programmable measuring current 10% to 100% in 1% steps	√	√	√
高精度0.03%/High Accuracy0.03%	√	√	√
每秒50次测量的快速测量能力 Fast measuring capability of50measurements per second	√	√	√
前面板上带有红色/绿色灯的可编程高低限 Programmable High Low Limits with red/green lamps on front panel	√	√	√
开路电压限制模式20mV/50mV最大 Open Circuit voltage limit mode 20mV/50mV maximum	√	√	√
测量电流选择+I/-I和自动平均 Measuring current selection +I/-I and Auto average	√	√	√
数据记录和统计分析/Data logging with statistical analysis	√	√	√
电缆长度计算/Cable length calculations	√	√	√
内置可充电电池/Rechargeable batteries built in	ㄨ	√	ㄨ

如果您希望了解更多Seaward Cropico DO5000微欧姆表，或是需要购买或是售后维修，联系我们工作人员。
