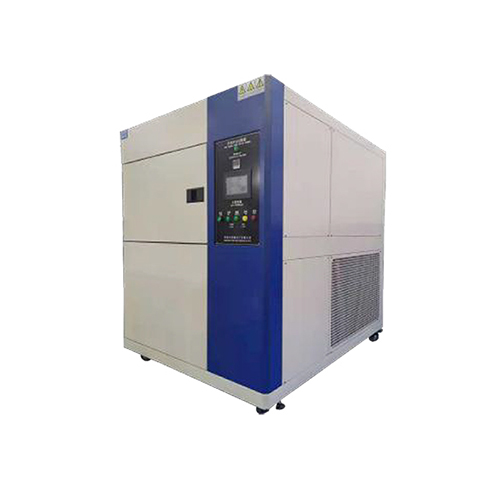

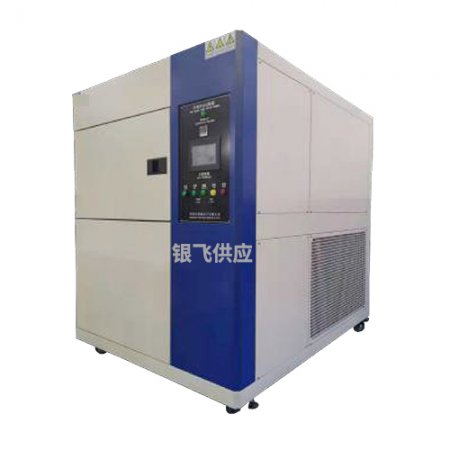

TS-III-100B三箱换气式冷热冲击试验箱
TS-III-100B三箱换气式冷热冲击试验箱 适用于所有3C电子产品及样品，模拟环境类测量，采用温度冲击测试。对3C类产品进行各类原材料与成品在极限高温与极限低温连续的瞬间转换的气候环境下，评估其物理，化学，电性能的耐受程度及可靠性 。Thermal shock test chamber is used to test all kinds of raw materials and finished products under the continuous instantaneous conversion of extreme high temperature and extreme low temperature. To evaluate the reliability of physical，chemical and electrical properties of ra......
产品描述
TS-III-100B三箱换气式冷热冲击试验箱适用于所有3C电子产品及样品，模拟环境类测量，采用温度冲击测试。对3C类产品进行各类原材料与成品在极限高温与极限低温连续的瞬间转换的气候环境下，评估其物理，化学，电性能的耐受程度及可靠性 。 Thermal shock test chamber is used to test all kinds of raw materials and finished products under the continuous instantaneous conversion of extreme high temperature and extreme low temperature. To evaluate the reliability of physical，chemical and electrical properties of raw materials or finished products。
TS-III-100B三箱换气式冷热冲击试验箱使用说明书
温度冲击测试
三箱换气式结构
容量：100L
内容积：W50*H40*D50cm
冲击温度：-80℃～220℃
切换时间：≤10S
复归时间≤5Min
容量：100L
内容积：W50*H40*D50cm
冲击温度：-80℃～220℃
切换时间：≤10S
复归时间≤5Min
TS-III-100B三箱换气式冷热冲击试验箱规格使用操作说明书
| 型号 Model No. | TS-III-100A/B | TS-III-150A/B | TS-III-252A/B | TS-III-450A/B | |||
| 内箱容积 Internal volume（L） | 100 | 150 | 252 | 450 | |||
| 内箱尺寸 Internal size W*H*D(cm) | 50*40*50 | 60*50*50 | 60*60*70 | 80*75*75 | |||
| 外部尺寸 External size W*H*D(cm) | 135*183*183 | 145*190*193 | 145*203*213 | 166*224*236 | |||
| 重量 Weight（kg） | 1000/1200 | 1200/1400 | 1500/1700 | 1800/2000 | |||
|
温区结构 Temp. zone structure |
三温区结构：分为储热区、储冷区、试验区三个部分;三个区独立，通过风门切换温度 3 temp. zone structure it is divided into three parts: heat storage area，cold storage area and test area. The 3 temp. zone are independent，and the temperature is switched through the valve. |
||||||
|
冲击测试方式 Shock test mode |
冲击测试方式 1：低温→常温→高温→常温→低温 或 高温→常温→低温→常温→高温；如此循环; Shock mode 1: Low temperature → Room temperature → high temperature→Room temperature → low temperature or High temperature →normal temperature→ low temperature→ normal temperature→high temperature；so reciprocating cycle; 冲击测试方式 2：低温→高温→低温 或 高温→低温→高温；如此往复循环; Shock mode 2: Low temperature→high temperature →low temperature or high temperature→ low temperature→ high temperature；so reciprocating cycle |
||||||
|
性能参数 Performance parameter |
温度范围 Temp. range |
类型 Type | A type（-65℃~180℃） | B type（-78~220°C） | |||
| 高温 High temp | 60℃~180℃ | 60℃~220℃ | |||||
| 低温 Low temp | -65℃~-20℃ | -78℃~-20℃ | |||||
| 切换时间 Shift time | ≤10S | ||||||
| 复归时间 Recovery time | ≤5Min | ||||||
| 温度均匀度 Temperature uniformity | ≤2.0℃ | ||||||
| 温度偏差 Temperature deviation | ±2.0℃ | ||||||
