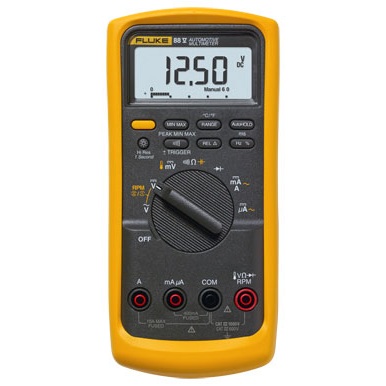

Fluke88V数字万用表
Fluke 88V是福禄克88系列的换代产品。新型的Fluke88V汽车诊断万用表进一步提高了测量功能与排障功能即准确度，可以完美地解决传统汽车与混和动力汽车的更多故障。 Fluke88V的工作方式非
产品描述
Fluke 88V是福禄克88系列的换代产品。新型的Fluke88V汽车诊断万用表进一步提高了测量功能与排障功能即准确度，可以完美地解决传统汽车与混和动力汽车的更多故障。 Fluke88V的工作方式非常类似于88系列，但是88V解决问题的功能更强大、更安全、便利，并且还具有更强的防碰撞功能。
特点：
-
0.1 % dc accuracy.
-
Current measurements up to 10 A, 20 A for up to 30 seconds.
-
Millisecond pulse width measurements for fuel injectors.
-
Optional magnetic hanger allows meter to attach to the vehicle and free your hands for other tasks.
-
Min/Max/Average recording with Min/Max Alert to capture variations automatically.
-
Peak Min/Max to record transients as fast as 250 μs.
-
Relative mode to remove test lead resistance from low ohms measurements.
-
Auto and manual ranging for maximum flexibility.
-
Autohold™ to capture stable readings with only one touch of the leads.
-
Large display digits and two-level bright white backlight for increased visibility.
-
Analog bargraph to track changing or unstable signals.
-
Input Alert provides audible warning against wrong use of input jacks.
-
Access door for fast battery changes without opening up the case.
-
“Classic design that fits your hand with new removable holster, built-in test lead and probe storage.
-
10 meg ohm input impedance won’t damage computer circuits.
-
Limited lifetime warranty.
技术指标：
|
技术指标 |
|
直流电压 |
|
量程 |
1000V |
|
精度 |
±(0.1%+1) |
|
较好分辨率 |
0.01 mV |
|
|
交流电压 |
|
量程 |
1000V |
|
精度 |
±(0.5%+2) |
|
交流带宽 |
5kHz |
|
较好分辨率 |
0.01 mV |
|
|
直流电流 |
|
量程 |
10A |
|
精度 |
±(0.4%+2) |
|
较好分辨率 |
0.001 mA |
|
|
交流电流 |
|
量程 |
10A |
|
精度 |
±(1.2%+2) |
|
较好分辨率 |
0.001 mA |
|
|
电阻 |
|
量程 |
50 MΩ |
|
精度 |
±(0.4%+1) |
|
较好分辨率 |
0.1Ω |
|
|
电容 |
|
量程 |
9,999 µF |
|
精度 |
±(1%+2) |
|
较好分辨率 |
0.01 nF |
|
|
频率 |
|
量程 |
200 KHz |
|
精度 |
±(0.005%+1) |
|
较好分辨率 |
0.01 Hz |
|
|
占空比 |
|
量程 |
99.9 % |
|
精度 |
within 2% per KHz +0.1% |
|
较好分辨率 |
0.1 % |
|
|
温度测量（不含探头） |
|
|
-200.0°C - 1090°C |
|
|
-328.0°F - 1994.0°F, 1.0% |
|
|
80BK温度探头 |
|
|
-40 °C - 260 °C |
|
|
-40 °F - 500 °F, 2.2 °C or 2% 取较大值 |
|
|
电导率 |
|
量程 |
60.00 nS |
|
精度 |
±(1.0%+10) |
|
较好分辨率 |
0.01 nS |
|
|
工作范围 |
|
工作温度 |
-20 °C - 55 °C |
|
储存温度 |
-40 °C - 60 °C |
|
|
尺寸及重量 |
|
|
5.2 cmx9.8cmx20.1 cm (2.06x3.86x7.93 in) |
|
|
624 g (22 盎司) |
|
型号与配件：
|
型号名称 |
描述 |
|
Fluke 88V |
汽车数字多用表包括:
-
Fluke 88V 数字多用表
-
High-impact holster
-
Test leads
|
|
|
机套和挂件 |
|
C550 |
工具包 |
|
C800 |
仪表和附件箱 |
|
CAMO-C25 |
迷彩便携包 |
|
C1600 |
带轮的万用表和附件仪器箱 |
|
C25 |
用于数字万用表的大软包 |
|
汽车测试附件 |
|
BP880 |
BP880 BNC to Female Double Stacking Banana Plug |
|
RPM80 |
RPM80 感应式采集/外部触发器 |
|
TL82 |
TL82 汽车探针-管套适配器组 |
|
TLK281 |
TLK281 SureGrip™ 汽车测试线套件 |
|
TLK282 |
TLK282 SureGrip™ 高级汽车测试线套件 |
|
电流钳 |
|
80i-110s |
交/直流电流钳 |
|
i1010 |
交/直流电流钳 |
|
温度 |
|
80AK-A |
热电偶适配器 |
|
80PK-22 |
SureGrip 浸入式温度探头 |
|
80PK-25 |
SureGrip 刺穿式温度探头 |
|
80PK-3A |
表面探头 |
