多参数生命监护设备的质控检测用途及重要性

时间:2023-10-23 点击：次分类:技术文章

一、多参数生命监护设备质控检测的重要性

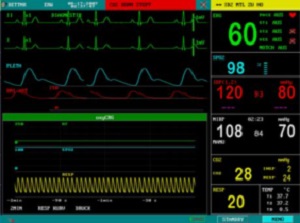

多参数心电监护仪是医院最为常用的医疗仪器，可以监测患者的心电图形、呼吸、体温、血压（分无创和有创）、血氧饱和度、脉率等生理参数。只有定期执行病人监护仪的质控检测，保障监护仪安全有效，才能避免监护设备不正确读数导致的错误诊断，对患者的健康和药物治疗产生巨大影响。以及避免发生医疗器械不良事件。

二、生命监护设备质控检测方案

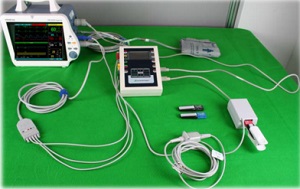

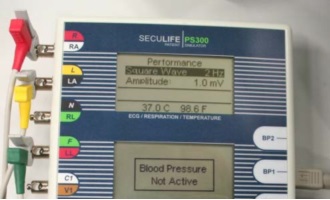

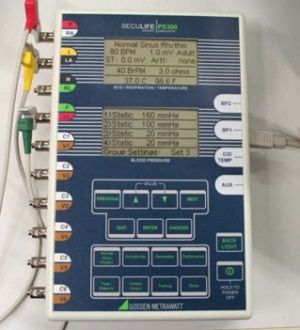

多参数模拟器SECULIFE PS300是一款多参数的生命体征模拟仪，可提供准确稳定的生命体征模拟信号，可用于各类生命监护设备的研发、生产、质检、使用、维修后等环节中的性能检测，例如：多参数监护仪、ECG心电图机、血压计和血氧仪等。With the SECULIFE PS300 Multi-Patient Simulator, you can test ECG and long-term ECG devices for flawless functioning.

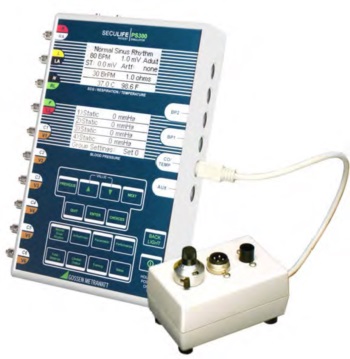

The portable, multi-parameter patient simulator is not only one of the most versatile systems on the market, it can be intuitively operated as well because it’s unnecessary to enter any additional parameters. Simple scroll control for selecting options makes the PS300 an ideal choice for routine testing of patient monitoring and arrhythmia systems. Two graphic displays allow for display and editing of all possible parameters. Whether for testing, inspection or vocational training, the PS300 supplies the necessary simulations. SpO2 simulation (option), a simple fetal/maternal simulation (option) and a cardiac output (option) are available in addition to ECG, blood pressure, respiration and temperature.

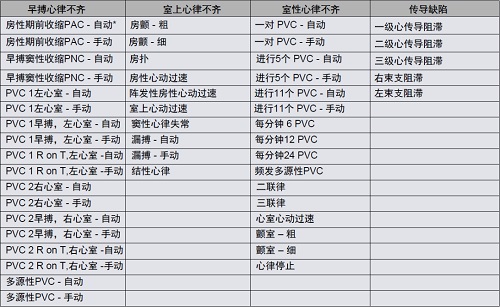

The microprocessor-based patient simulator offers ECG patient simulation, 49 arrhythmias, auto-sequences for BPM, static pressure and performance. And thus you’re provided with a lifelike, independent curve display of the ECG signals. The instrument can be remote controlled via RS 232 and flash programmed in the field.

Quick start functions allow for convenient start-up of the instrument with the most recent user data.

Other decisive strengths of the patient simulator include outstanding ease of use and multifunction features. Continuity tests and more can also be conducted with the SECULIFE PS300. This small, high-performance instrument with numerous functions and minimal weight is a must for your test equipment.

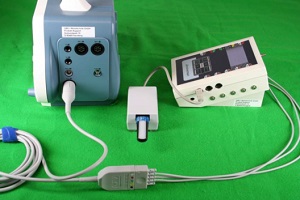

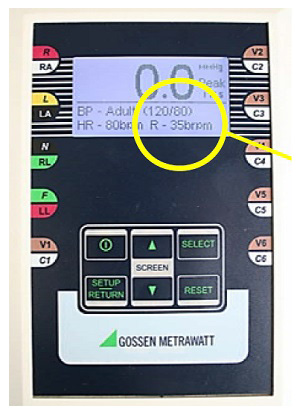

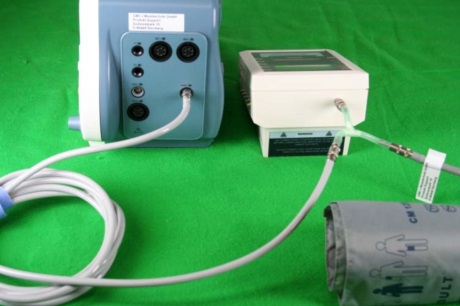

多参数模拟器SECULIFE BP PRO是一款基于微处理器的高精度无创血压（NIBP）模拟器。可提供有创血压、温度、心律失常和泄漏率测试模式，该装置体积小巧，易于使用，并具有多种功能，以适应许多不同的应用。

The SECULIFE | BPPRO is the high-end product from the new range of NIBP simulators and is distinguished by a great variety of functions. It includes functions such as NIBP, IBP, ECG, temperature, arrhythmia, respiration, leak detection and much more.

Specially developed to cover a great diversity of functions and nevertheless to ensure a compact design, the SECULIFE | BPPRO fulfills the requirements of modern medical technology. It makes no compromises with regard to functionality and input diversity. There’s hardly another product with a similarly large range of features.

The multi-connect ports make it possible to connect 2 and 4 mm ECG cables and permit use of ECG cables with pushbutton or clip.
