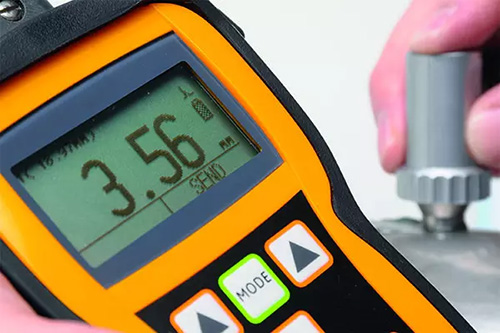

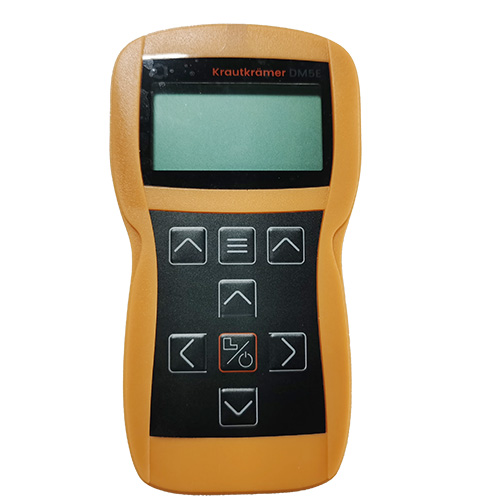

Krautkramer DM5E超声波测厚仪|超声波壁厚计
Krautkramer DM5E超声波测厚仪|超声波壁厚计相较于之前的型号，在正常和高温环境下展现了显著的性能提升。其在厚度测量稳定性和可重复性方面做出了重大改进，确保了在各种温度条件下的精准度和一致性，有效减少了环境因素引起的测量误差。专为应对最严苛的工作环境设计，DM5E特别适用于石油和天然气、石化和发电等行业中的关键设备监测。无论是管道、压力容器还是储罐的壁厚测量，都能精确无误地完成任务。其卓越的稳定性与可重复性不仅提高了检测效率，而且增强了对设备腐蚀和磨损状况的监控能力，为工业设施的安全运行提供了有力保障。DM5E系列超声波壁厚仪凭借其在恶劣环境下的出色表现和精准测量技术，已成为业界信赖的壁厚测量解决方案。The DM5E family represents the highest standard of portable corrosion monitoring thickness gauges
The DM5E offers significant improvement in performance over previous corrosion thickness gauges in terms of better thickness measurement stability and repeatability at normal and elevated temperatures. It has been designed for operation in the harshest working environments, performing wall thickness measurements on pipelines, pressure vessels and storage tanks in the oil and gas industry, as well as in the petrochemical and power generation sectors.
DM5E超声波测厚仪是一款代表着精确度和用户友好性的巅峰之作，它与我们业界优秀的秀的探头完全兼容，为厚度测量设定了全新的高标准。其设计轻巧且符合人体工程学原理，非常适合日常使用，无论是在实验室还是在工业现场。该测厚仪的界面直观易懂，校准过程简单快捷，确保您在任何环境下，甚至是极其恶劣的工作条件下，都能获得值得信赖的测量结果。其卓越的性能和可靠性使DM5E成为各类行业中的理想选择之一，包括但不限于石油和天然气、石化和发电等行业。DM5E预编程了最常用的探头型号，如501、503、512、FH2E和590，这一贴心设计极大地简化了您的操作流程，让您能够更轻松地获取准确且可靠的读数。为了满足不同用户的需求和预算，我们提供了三个功能级别供您选择，确保您能找到最适合自己的功能配置。
DM5E超声波测厚仪凭借其精准的测量技术、人性化的设计以及广泛的探头兼容性，成为了厚度测量领域的创新者之一设备。无论是专业人士还是新手用户，都能在这款仪器的帮助下，实现高效、精确的壁厚测量，确保工业设施的安全运行和维护。
DM5E系列超声波测厚仪优势
- 所有版本的 DM5E 均具有相同的用户友好型操作键盘界面
- 为 DM5E 系列开发了一套新的超声波探头，为仪器提供优化的性能
- 借助 DM5E 和 DM5E DL 均提供的双多测量功能，无需去除任何保护涂层
- DM5E DL 的内置数据记录器，能够以网格和线性文件的形式存储多达 50,000 个读数
DM5E超声波测厚仪特点
- 符合人体工学设计，重量仅为 223 克
- AA 电池可运行长达 60 小时
- LCD 数据显示屏具有背光，可在所有照明条件下保持可见
- 双重多重操作模式
- 无需去除测量点的涂层，节省您的时间和金钱
DI5E超声波测厚仪特征
- 测量范围为0.025至20英寸
- 分辨率为0.01,0.001,0.0001
- 材料速度范围为0.0200至0.7362英寸/毫秒1m/s (0.0001 in /ms)分辨率
- 高分辨率图形LCD，64x128像素
- 电源要求2节AA电池(含)需要单独购买厚度探头
| Parameter Name | Parameter Details |
|---|---|
| Measurement Principle | Ultrasonic Pulse-Echo |
| Measurement Range | 0.60 mm - 508 mm (depending on probe and material type) |
| Dual-Multi Measurement Mode Range | 2.00 mm - 127.0 mm (coating thickness range 0.3 mm - 2.5 mm) |
| Resolution | Default 0.01 mm, selectable 0.01 mm or 0.1 mm |
| Material Velocity Range | 0.508 mm/msec - 18.699 mm/msec |
| Material Velocity Resolution | 1 m/s |
| Units | Inches or millimeters |
| Calibration Methods | Single-point calibration, online two-point calibration, offline two-point calibration |
| Transmitter Voltage | 120 V into a 50 Ohm load |
| Receiver Bandwidth | 500 KHz - 12 MHz @ -3 dBG, Automatic Gain Control |
| Display Type | High-resolution graphic LCD |
| Display Size | 64 x 128 pixels, 53.0 mm x 27.0 mm |
| Backlight | Yes |
| Contrast | Adjustable |
| Refresh Rate | User-selectable 4 Hz or 8 Hz |
| Scan Mode Capture Rate | 24 Hz |
| Thickness Value Display | NORMAL view and B-SCAN view, 5-digit numbers |
| Alarm Settings | Minimum and maximum alarms, range 0.25 mm - 508 mm |
| Power | 2 "AA" size batteries |
| Battery Life | Approximately 60 hours |
| Shutdown Options | Always on or auto-off after 5/10/15/30 minutes |
| Language Selection | English, German, French, Spanish, Italian, Russian, Japanese, Chinese |
| I/O Connectors | Dual Lemo 00 (coaxial), miniUSB |
| Operating Temperature | -10°C to +50°C (+10°F to +120°F) |
| Storage Temperature | -20°C to +60°C (-10°F to +140°F) |
| Weight (including batteries) | 223 g (0.597 lb) |
| Dimensions | 138 mm x 32 mm x 75 mm |
| Shock Resistance | Compliant with IEC 68-2-27 Ea standard, Mil Std 810C Method 516.2 Program I testing |
| Sealability | Compliant with IEC529 / IP54 standard, dust and water-resistant rating IP54 |
| Data Logger | Optional, capacity up to 50,000 readings |
| File Structure | Grid file, row and column numbers up to 50,000 and 223 respectively |
| File Naming | Supports up to 24 characters of alphanumeric name |
| Optional Software | UltraMATE and UltraMATE Lite |
| Probe Models | DA501, DA503, DA512, DA590, FH2E |
| Probe Frequencies | 5 MHz, 2 MHz, 7.5 MHz, 5 MHz, 7.5 MHz |
| Probe Styles | Standard, finger-tip, high-temperature finger-tip, etc. |
