Fluke Calibration 9100S/9102S Handheld Dry-Well

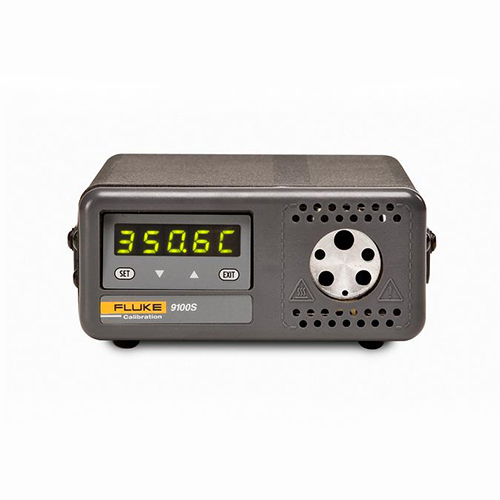

Fluke Calibration 9100S Handheld Dry-Well
Product Specification
Environmental Conditions
Fluke Calibration 9100S/9102S Handheld Dry-Well calibrators are designed for precise temperature calibration of RTDs and thermocouples in field or lab environments. Key features include:
High accuracy: ±0.25°C with a resolution of 0.1°C, ensuring reliable calibration results.
Portable design: Lightweight (1.1 kg) and compact (150 x 125 x 57 mm), ideal for on-site use.
Wide temperature range: Covers industrial needs with support for Celsius and Fahrenheit scales.
Efficient performance: Fast heating/cooling times for quick calibration cycles, similar to Fluke's other handheld models like the 714B and 725.
These dry-wells are part of Fluke's trusted calibration tools, known for their durability and compliance with international standards (SI units).
Article from Fluke, Since we introduced the world's first truly handheld dry-well, many have tried to duplicate it—in vain. Despite its small size (2¼ inches high and 5 inches wide) and light weight, the 9100S outperforms every dry-well in its class in the world.It's simple and convenient, too. Anyone can learn to use one in less than 15 minutes. It has a range to 375 °C (707 °F) and is perfect for checking RTDs, thermocouples, and small bimetal thermometers in the field.Plug it in, switch it on, set the temperature with the front-panel buttons, and insert your probe into the properly sized well. Compare the reading of your device to the display temperature or to an external reference, and the difference is the error in your device. With a proprietary Fluke Calibration temperature controller, the 9100S has a display resolution of 0.1 degrees, an accuracy of ±0.5 °C, a stability of ±0.1 °C, and a stabilization time of just five minutes.The Fluke 9100S Mid-Range Field Calibrator may be used as a portable instrument or bench top temperature calibrator for calibrating thermocouple and RTD temperature probes. This instrument is small enough to use in the field, and accurate enough to use in the lab. Calibrations may be done over a range of 35°C to 375°C (95°F to 707°F). Temperature display and setability resolution is 0.1 degrees.
|
Key features
World’s smallest, lightest and most portable dry-wells
● Rapid heating and cooling
● Prop stand
● RS-232 interface capability
Built in programmable features include
● Temperature scan rate control
● Eight set-point memory
● Adjustable readout in °C or °F
|
| Specifications | Fluke9100S | Fluke9102S |
| Range | 35℃to 375℃ (95°F to 707°F) | –10℃ to 122℃ (14°F to 252°F) at 23°C ambient |
| Accuracy | ±0.25℃ at 50℃; ±0.25℃ at 100℃; ±0.5℃ at 375℃ | ±0.25℃ |
| Stability | ±0.07℃ at 50℃; ±0.1℃ at 100℃; ±0.3℃ at 375℃ | ±0.05℃ |
| Well-to-well uniformity | ±0.2°C with sensors of similar size at equal depths within wells | ±0.2°C with sensors of similar size at equal depths within wells |
| Heating times | 35℃to 375℃: 9.5 minutes | Ambient to 100℃: 10 minutes |
| Stabilization | 5 minutes | 7 minutes |
| Cooling times | 375℃ to 100℃: 14 minutes | Ambient to 0℃: 10 minutes |
| Well depth | 102mm (4 in); 1.6mm (1/16 in) hole is 89mm (3.5 in) deep | 102mm (4 in) |
| Removable inserts | N/A | Available in sizes from 1.6mm (1/16 in) to 11.1mm (7/16 in) [6.4mm (1/4 in) and 4.8mm (3/16in) included |
| Power | 115 V AC (±10%), 55–65 Hz, 1.5 A or 230 V AC (±10%), 0.8 A, 45–55 Hz, 175 W | 94-234 V AC (±10%), 50/60 Hz, 60 W; or 12 V DC |
| Size (HxWxD) | 57x125x150mm (2.25x4.9x6.1 in) | 99x140x175mm (3.9x5.5x6.9 in) |
| Weight | 1 kg (2 lb 3 oz) | 1.8 kg (4 lb) |
| Computer interface | RS-232 included | |
| NIST-traceable calibration | Data at 50℃, 100℃, 150℃, 200℃, 250℃, 300℃ and 375℃ | Data at –10℃, 0℃, 25℃, 50℃, 75℃,100℃ and 122℃ |
Environmental Conditions
Although the instrument has been designed for optimum durability and trouble-free operation, it must be handled with care. The instrument should not be operated in an excessively dusty or dirty environment. Maintenance and cleaning recommendations can be found in the Maintenance Section of this manual.The instrument operates safely under the following conditions:temperature range: 5–50°C (41–122°F), ambient relative humidity: 15–50%, pressure: 75kPa–106kPa, mains voltage within ±10% of nominal, vibrations in the calibration environment should be minimized, altitudes less than 2000 meters, indoor use only.
Set-up
深圳银飞有售Fluke Calibration 9100S Handheld Dry-WellSet-up
Place the calibrator on a flat surface with at least 6 inches of free space around the instrument. Always leave enough clearance in front of the instrument to allow for safe and easy insertion and removal of probes. The prop stand may be swung down to raise the front of the instrument from a horizontal position. Plug the power cord into a grounded mains outlet. Observe that the nominal voltage corresponds to that indicated on the calibrator. Turn on the power to the calibrator by toggling the power switch on. The fan should begin quietly blowing air through the instrument and the controller display should illuminate after 3 seconds. After a brief self-test the controller should begin normal operation. If the unit fails to operate please check the power connection.The display should show the well temperature and the well heater will bring the temperature of the well to the set-point temperature.After using the calibrator, allow the well to cool by setting the temperature to 25°C and waiting 1/2 hour before turning the instrument off.
