型号

TH6402A

TH6402B

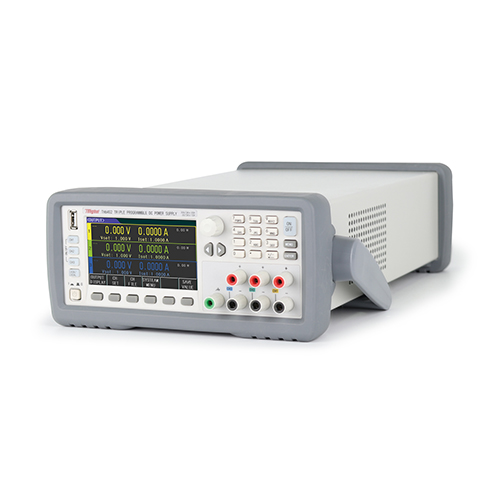

TH6402

TH6412

TH6413

额定输出(0℃-40℃)

通道/范围

CH1

CH2

CH3

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

电压

0-30V

0-5V

0-30V

0-10V

0-5V

0-30V

0-6V

0-30V

0-6V

0-60V

0-6V

电流

0-3A

0-3A

0-1A

0-3A

0-5A

0-6A

0-5A

0-3A

0-5A

功率

90W

15W

90W

30W

5W

90W

30W

180W

30W

180W

30W

负载调整率

电压

≤0.01%+3mV

电流

≤0.1%+3mA

≤0.01%+3mA

电源调整率

电压

≤0.01%+3mV

电流

≤0.1%+3mA

≤0.01%+3mA

设定值分辨率

电压

10mV

1mV

电流

1mA

0.1mA

回读分辨率

电压

10mV

1mV

电流

1mA

0.1mA

设定值精度

(25℃±5℃)

电压

≤0.05%+20mV

≤0.1%+20mV

≤0.03%+10mV

电流

≤0.2%+5mA

≤0.2%+5mA

≤0.1%+5mA

≤0.1%+8mA

≤0.1%+5mA

≤0.1%+5mA

回读值精度

(25℃±5℃)

电压

≤0.05%+20mV

≤0.1%+20mV

≤0.03%+10mV

电流

≤0.2%+5mA

≤0.2%+5mA

≤0.1%+5mA

≤0.1%+8mA

≤0.1%+5mA

≤0.1%+5mA

纹波和噪声(20Hz-20MHz)

电压(Vp-p)

≤3mVp-p

≤3mVp-p

≤3mVp-p

≤4mVp-p

≤4mVp-p

≤4mVp-p

电压（rms）

≤1mVrms

≤1mVrms

≤1mVrms

≤1mVrms

≤1mVrms

电流

≤3mArms

≤3mArms

≤3mArms

≤5mArms

≤5mArms

≤4mArms

≤5mArms

串联同步误差

≤0.02%+5mA

≤0.2%+10mA

≤0.05%+10mA

并联设定值精度

电压

≤0.02%+5mV

≤0.02%+10mV

≤0.02%+5mV

≤0.02%+5mV

≤0.02% + 10mV

电流

≤0.1%+20mA

≤0.2%+20mA

≤0.1%+20mA

≤0.1%+30mA

≤0.1%+30mA

记忆

回调储存

40组设定文件/通道

定时器

功能

定时关闭输出

时间设置

0.1秒～99999.9秒

解析度

0.1秒

工作温度

0℃～40℃
