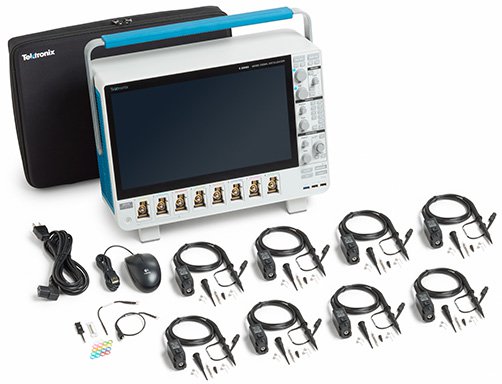

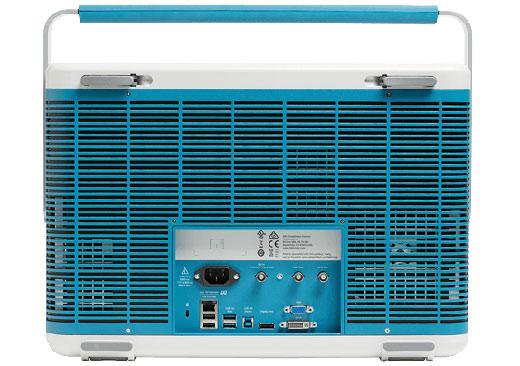

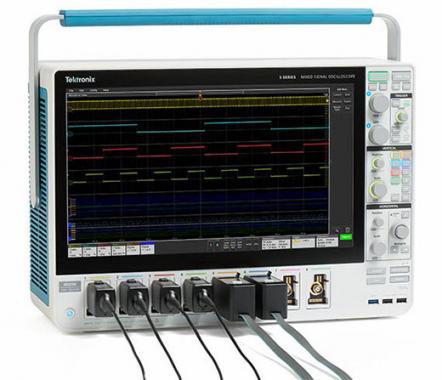

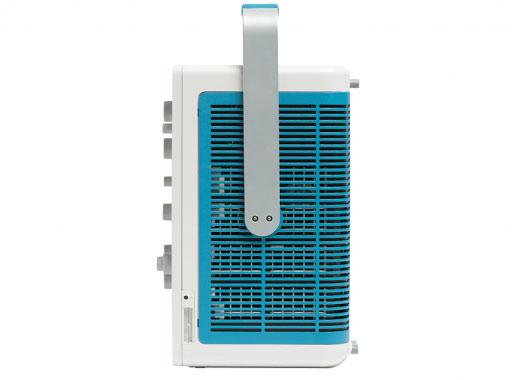

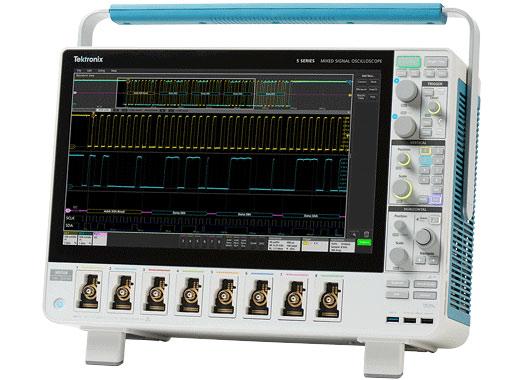

泰克 5 系列 MSO	泰克 MSO/DPO5000B	Keysight S 系列	LeCroy HDO6000A/HDO8000A	Rohde & Schwarz RTO2000	Yokogawa DLM4000 系列
详细比较	--	--	速查资料	速查资料	速查资料	速查资料
带宽	350 MHz 至 2 GHz	350 MHz 至 2 GHz	500 MHz 至8GHz	350 MHz 至 1 GHz	600 MHz 至 6 GHz	350 MHz，500 MHz
可升级带宽	是	否	是	否	是	否
模拟通道	4、6 或 8	4	2 或 4	4 或 8	2 或 4	8
模拟采样率（所有通道）	高达 6.25 GS/s	高达 5 GS/s	高达 10 GS/s	高达 2.5 GS/s	高达 10 GS/s	2.5 GS/s
标配记录长度（所有通道）	62.5 M	25 M	50 M	50 M	50 M	25 M
集成任意波形/函数发生器	50 MHz（可选）	--	--	--	100 MHz（可选）	--
数字通道（MSO 系列）	可达 64 条（可选）	16 条（可选）	16 条（可选）	16 条（可选）	16 条（可选）	8（标配）/ 24（选配）
ADC 分辨率	12 位	8 位	10 位	12 位	8 位	8 位
波形捕获率	>500,000 波形/秒	250,000 波形/秒	<1,100 波形/秒	<700 波形/秒	1,000,000 波形/秒	N/A
操作系统	封闭式 Linux 开放式 Windows（选配）	开放式 Windows	开放式 Windows	开放式 Windows	开放式 Windows	已关闭
标准探头	高达 1 GHz 无源 < 3.9 pF 负载	高达 1 GHz 无源 < 3.9 pF 负载	500 MHz Passive 9.5 pF loading	500 MHz 无源 10 pF 负载	500 MHz 无源 10 pF 负载	500 MHz 10.5 pF 负载
标准保修	3 年	1 年	3 年	3 年	3 年	?

嵌入式串行总线分析

自动串行总线解码可节省时间并消除手动解码时的错误。 串行总线触发和搜索允许隔离事件，便于系统级故障排除。

特点

• I2C，SPI

• I3C

• USB 2.0

• 以太网

• SPMI

• CAN, CAN FD, LIN, FlexRay

• SENT

• I2S/LJ/RJ/TDM

• ARINC 429、MIL-STD-1553

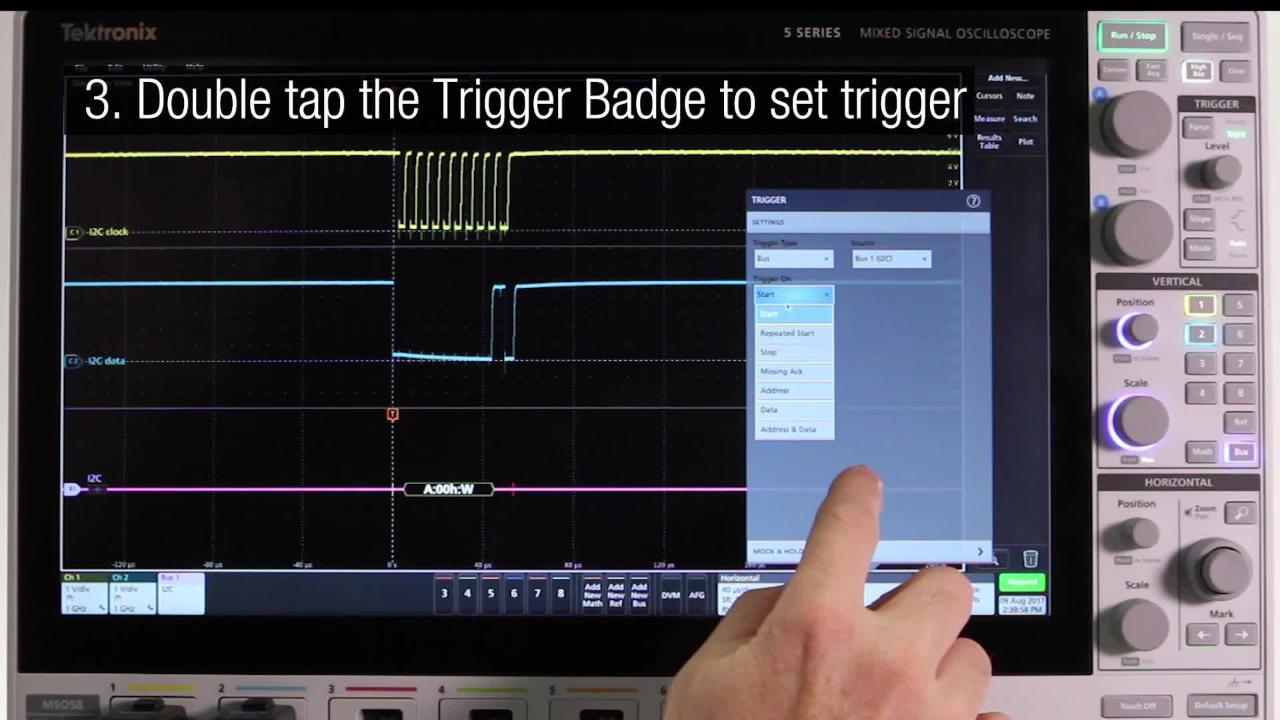

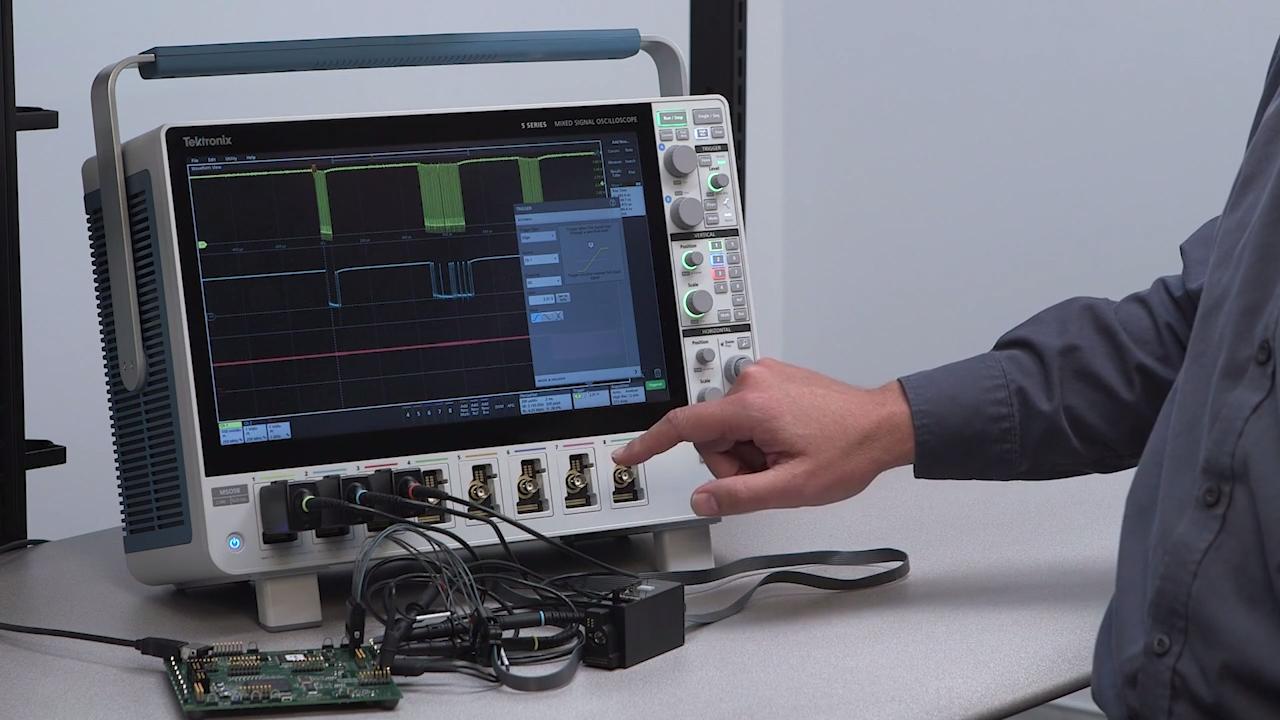

了解如何调试 I2C 和 SPI 解码和触发速度

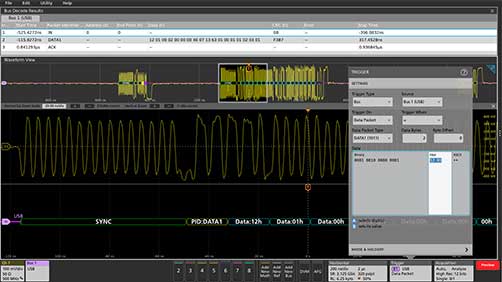

了解 USB 2.0 解码和触发

自动串行总线分析

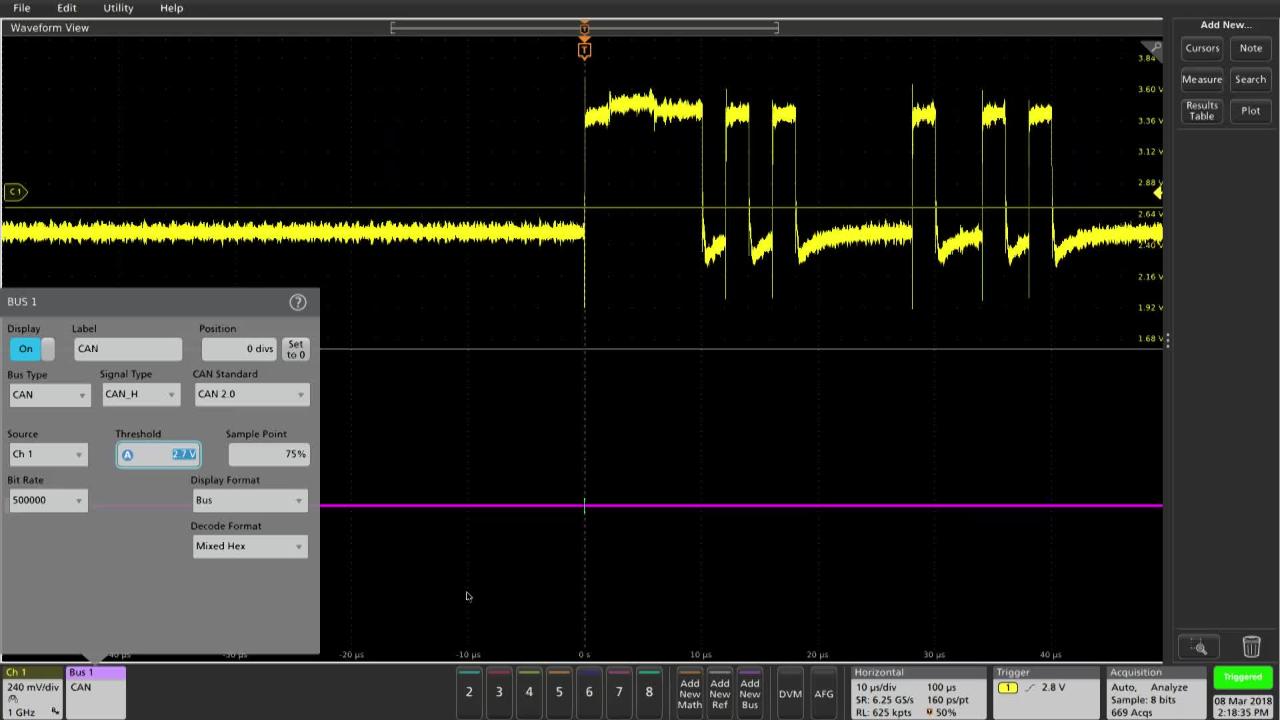

汽车设计人员可以依靠串行总线在 ECU、传感器与制动器之间实现准确通信。 5 系列 MSO 还具有CAN、CAN FD、LIN、FlexRay 和 SENT 解码和触发功能，可帮助其同步了解系统。 自动汽车以太网一致性套件供您按照标准测试，您无需成为高速总线专家。了解 CAN、CAN FD、LIN 和 FlexRay 解码和触发如何加快调试
了解 SENT 总线解码和触发

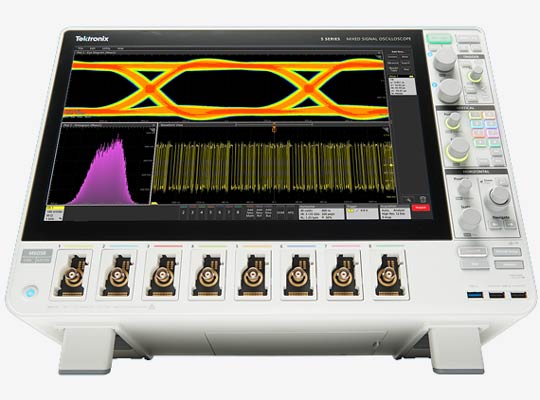

MSO54 MSO56 MSO58抖动分析

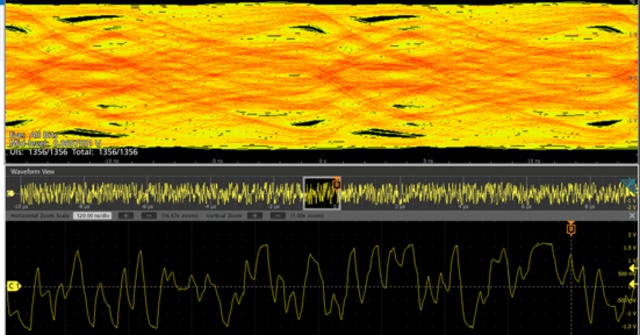

时钟在每个嵌入式系统和数字通信链路的中间位置。 抖动和其他时钟失真可能会影响系统运行，而不使用正确的分析工具将很难了解其根源。

特点

• 标准相位噪声、时钟抖动和定时以及波形直方图

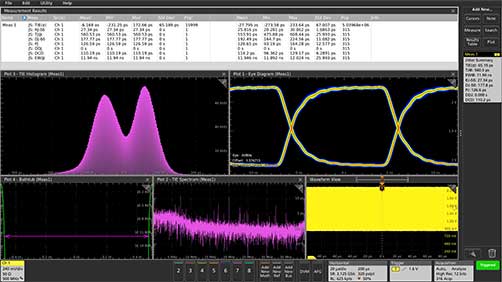

• 选配高级分析、抖动分解和时钟恢复

了解如何使用 5 系列 MSO 进行抖动分析
了解抖动分析的基本信息

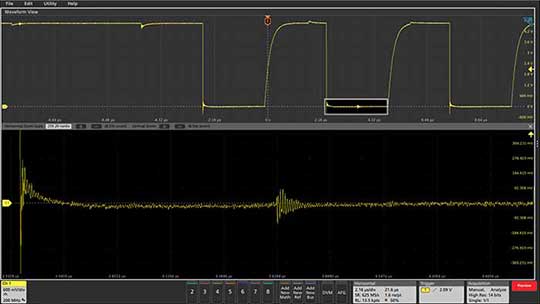

MSO54 MSO56 MSO58与功率电子

让电源质量、谐波、开关损耗、安全操作区测量更可靠且可重复，还带自动功率测量与分析包。 5 系列 MSO 具有高达8条高分辨率通道和多种可用探头，也适合评估电源时序并深入了解 3 相电源转换器。

特点

• 电源质量和谐波

• 开关损耗和安全作业区

• 电路内电感器和变压器分析

• 多输出效率

了解如何进行自动开关损耗测量、谐波测量等
了解如何通过多条通道简化电源时序
了解如何解码 SPMI 电源管理总线和在其上触发

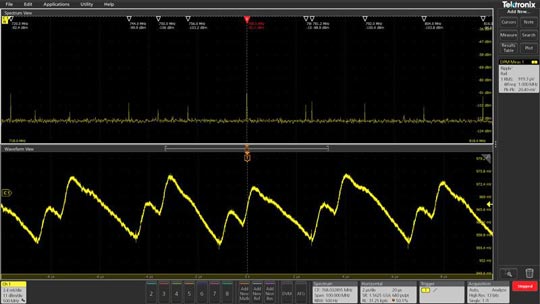

MSO54 MSO56 MSO58与电源完整性

如今的电路板可以有20个或更多的电源轨。其中有许多只有几伏，且有严格的噪音限制。需要特别注意准确测量。

MSO54 MSO56 MSO58特点

数字电源管理选件可自动执行纹波和开/关测量
多达8条模拟输入通道
兼容低噪音TPR系列电源轨探头

5 Series MSO Mixed Signal Oscilloscope 5-minute Overview Gary, Product Planner for the 5 Series MSO, gives a 5-minute demonstration of the instrument.  In just a few minutes you'll learn everything you need to know to use the new touch interface.  Get a …

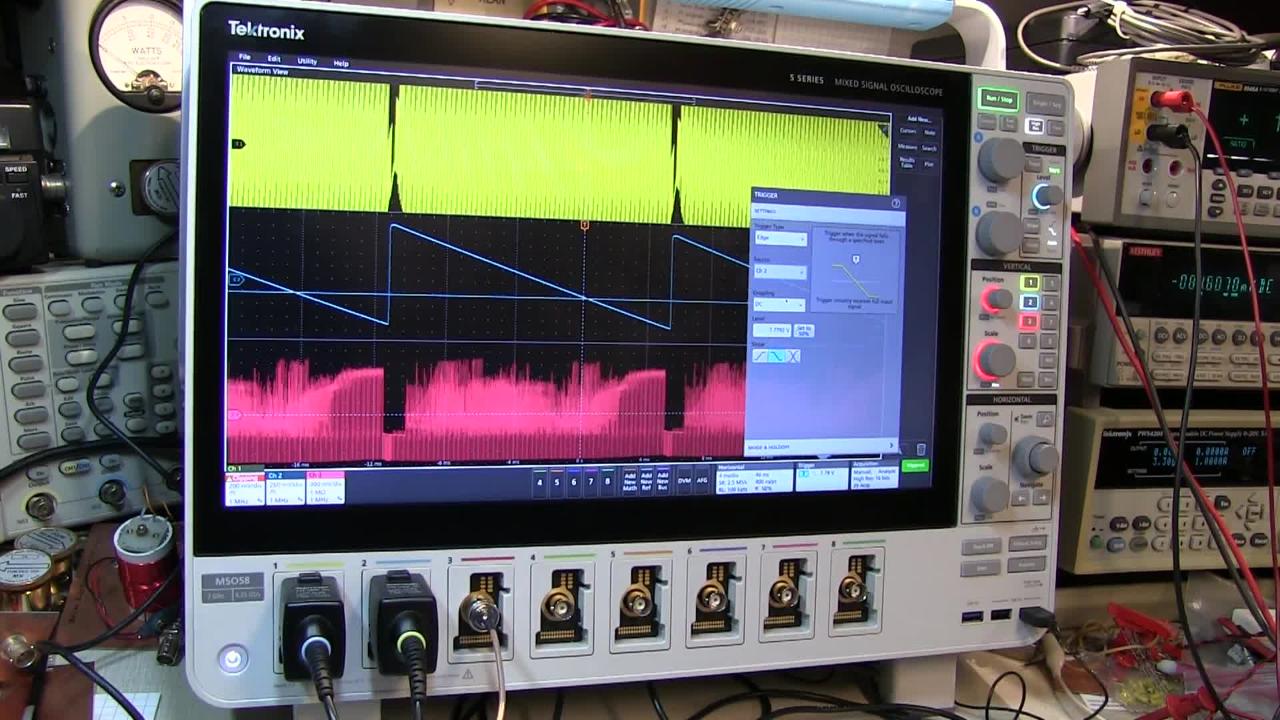

Spread Spectrum Clock Analysis With RF vs Time Triggering See how to stabilize a hardware trigger on the up-down chirp pattern of a spread spectrum clock using a Frequency Deviation vs. Time trigger.  The Spectrum View capability on the 4, 5 and 6 Series …
Finding root cause of EMI signals with Spectrum View See how to track down the source of transient RF/EMI emissions with Spectrum View and the RF vs Time triggering capabilities. Clearly determine which PCB signals are causing EMI emissions so that …
Triggering on an ASK (Amplitude Shift-Keying) Signal with Spectrum View Watch this short demo of RF vs Time hardware trigger to see how an ASK (Amplitude Shift-Keying) signal changes over time.  The Spectrum View capability on the 4, 5 and 6 Series MSO oscilloscopes …

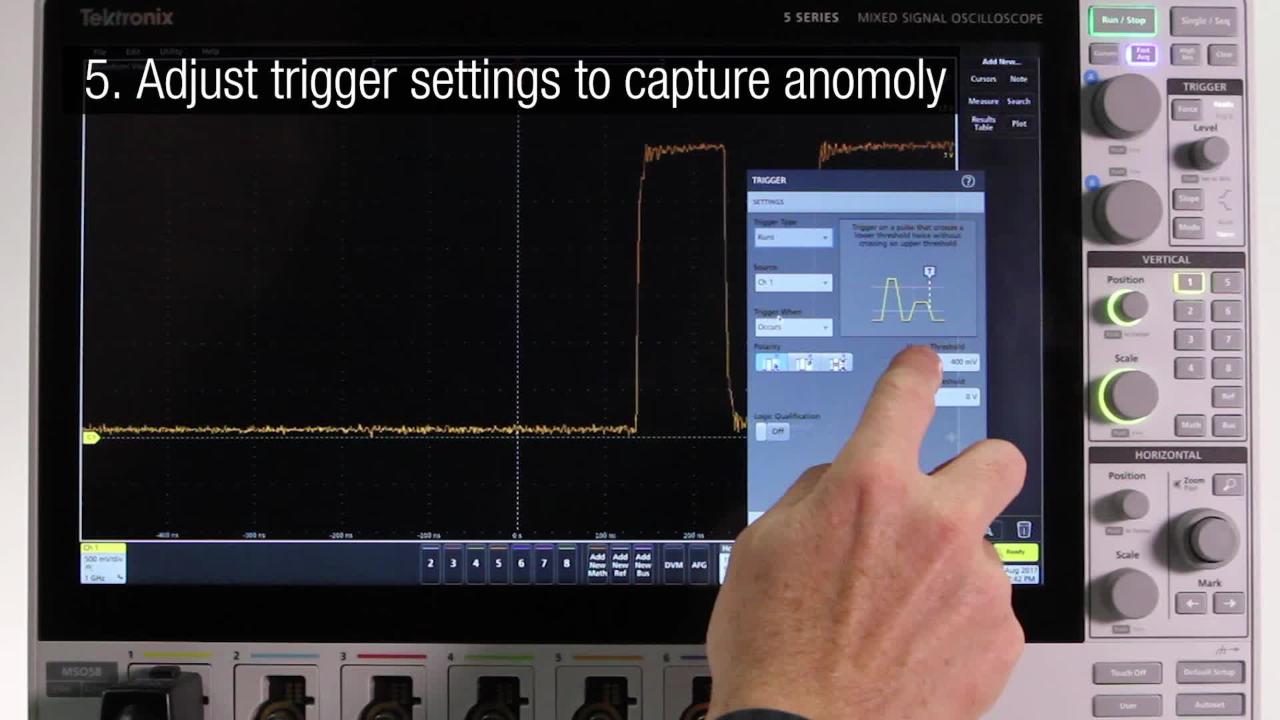

How to Find Signal Anomalies The FastAcq feature provides a quick method of finding even the most elusive signal events.

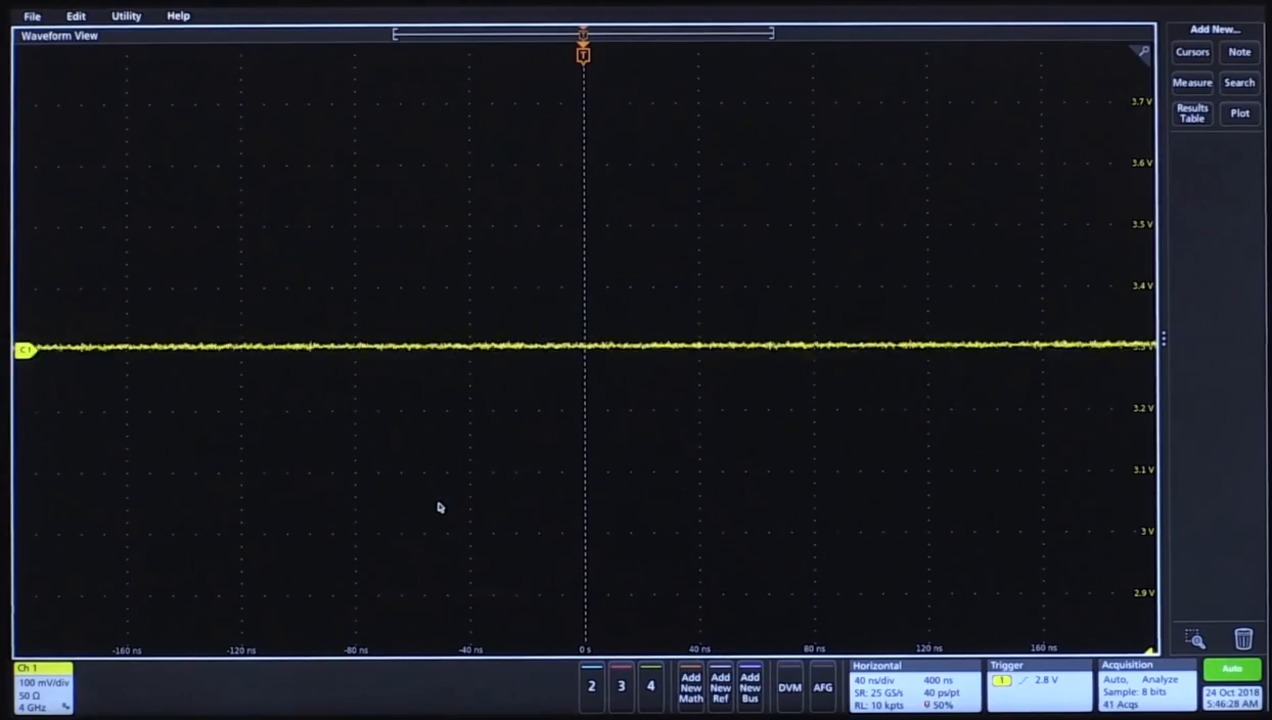

Making Power Rail Measurements See the ultra-low noise performance of the TPR4000 Power Rail Probe, and how it can be used for measuring DC power rail noise in microvolts, especially when paired with the 6 Series MSO …
Automotive Ethernet 100BASE-T1 Signal Separation and Protocol Decoding Demo A demonstration of 100BASE-T1 Automotive Ethernet protocol decoding on a 6 Series MSO oscilloscope.  This video shows how full-duplex 100BASE-T1 can be separated and decoded without breaking the …

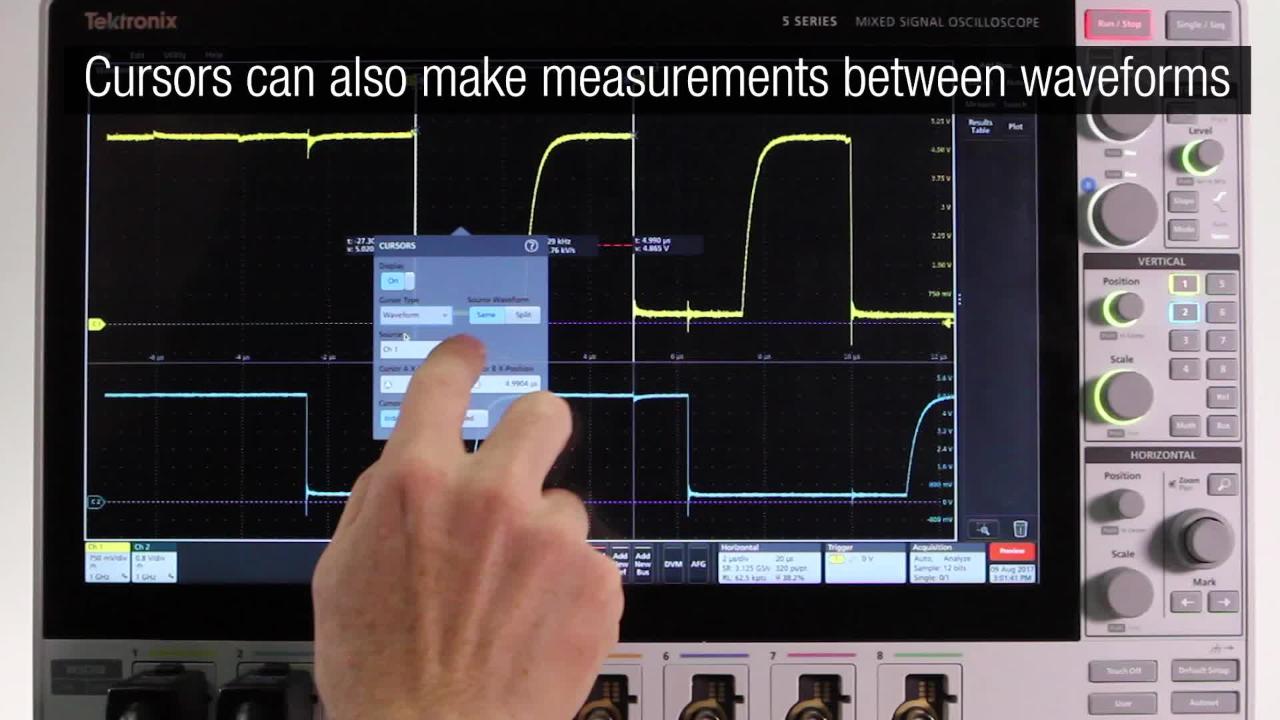

How to Use Cursors for Manual Measurements Cursors provide a quick method for making manual measurements. Here's how to use them.
Automotive Ethernet PAM3 and Signal Separation Introduction Automotive Ethernet with PAM3 introduces new test challenges. Tektronix' new, innovative, non-intrusive Signal Separation simplifies Automotive Ethernet testing and set-up, providing advanced …

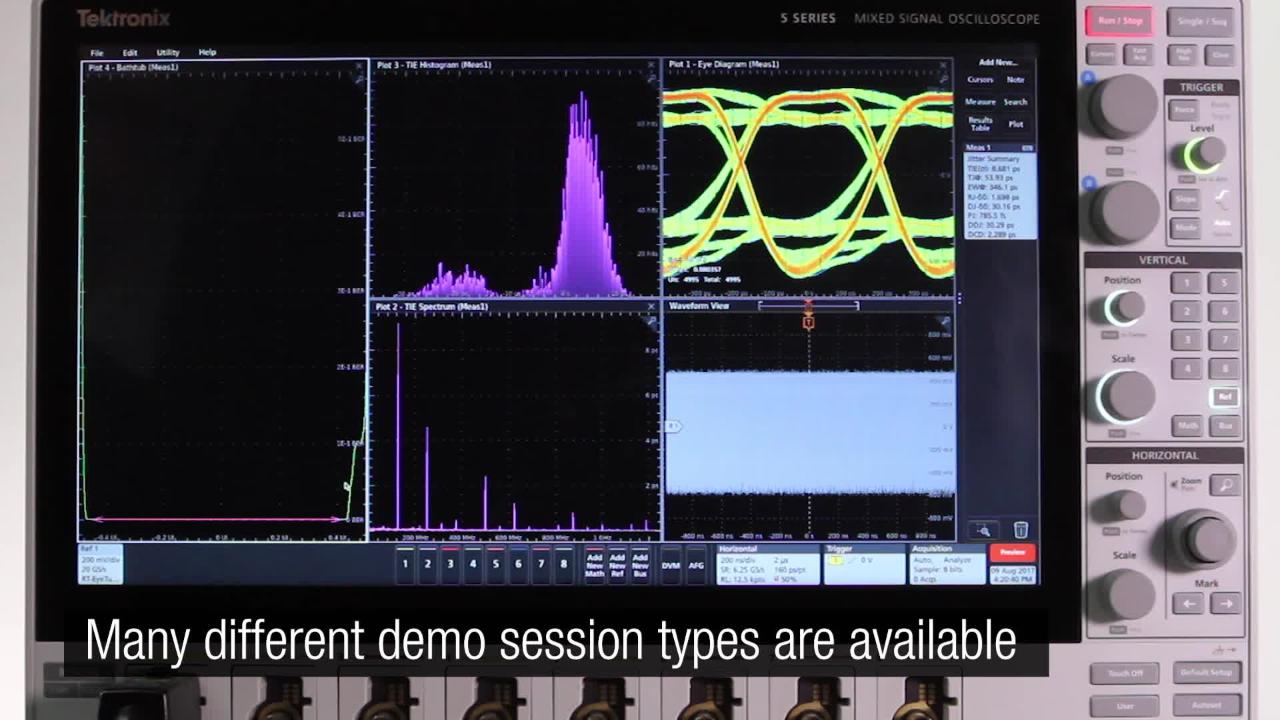

How to Recall Built-in Demo Sessions The 5 Series MSO contains many built-in demo examples. Here are just a few of them.

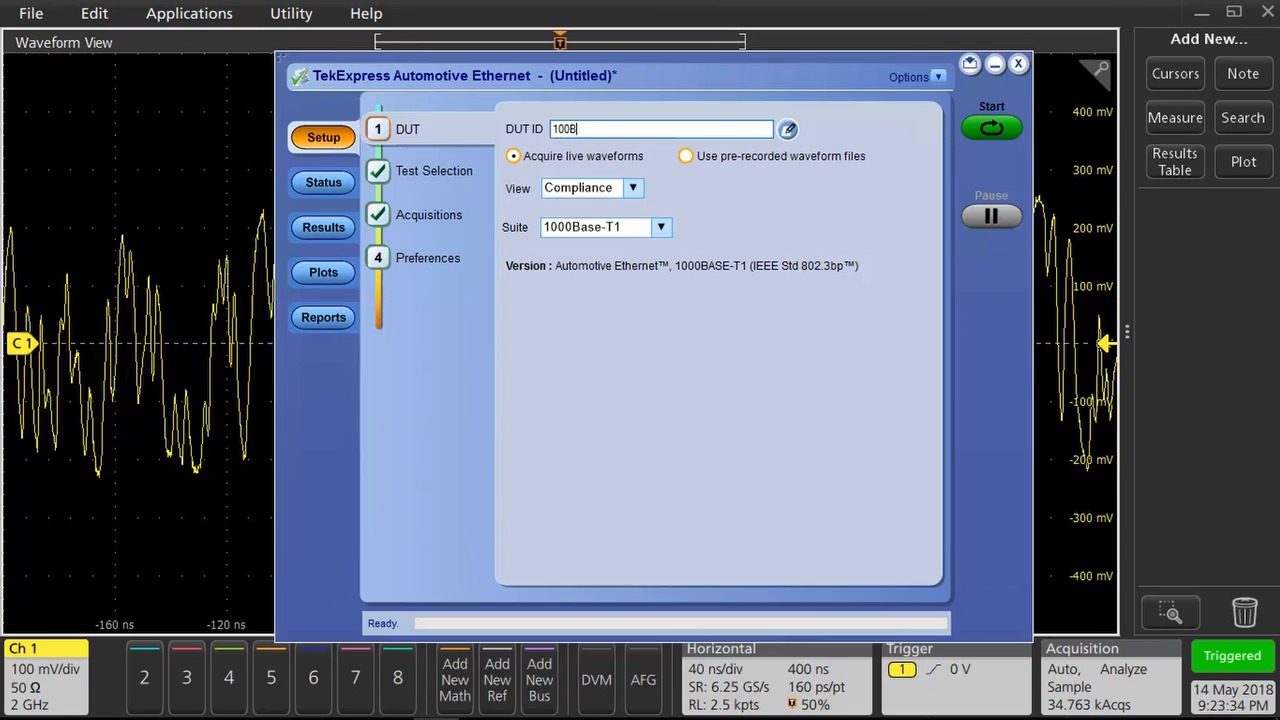

Demonstration of Automated Automotive Ethernet Compliance Test System Test automation may be used to check automotive Ethernet transmitters for compliance with the BroadR-Reach, 100BASE-T1 (P802.3bw), and 1000BASE-T1 (802.3bp) standards. This demonstration shows the …
Video Fun with XYZ plots on the 5 Series MSO See what happens when you mix a brand new oscilloscope, an apps engineer, and his composite video separator. Yes, you’ll see video on the scope display. But you’ll also learn about using 16-bit …
Spectrum View on the 5 and 6 Series MSOs How independent time and frequency controls beat traditional FFTs.
SENT Bus Decode and Trigger on 5 Series MSO This video shows how to set up automated SENT bus (also known as SAE J2716) decoding, triggering, and search on the 5 Series MSO mixed signal oscilloscope. 时长 2m 57s Engineers React to the 5 Series MSO Mixed Signal Oscilloscope

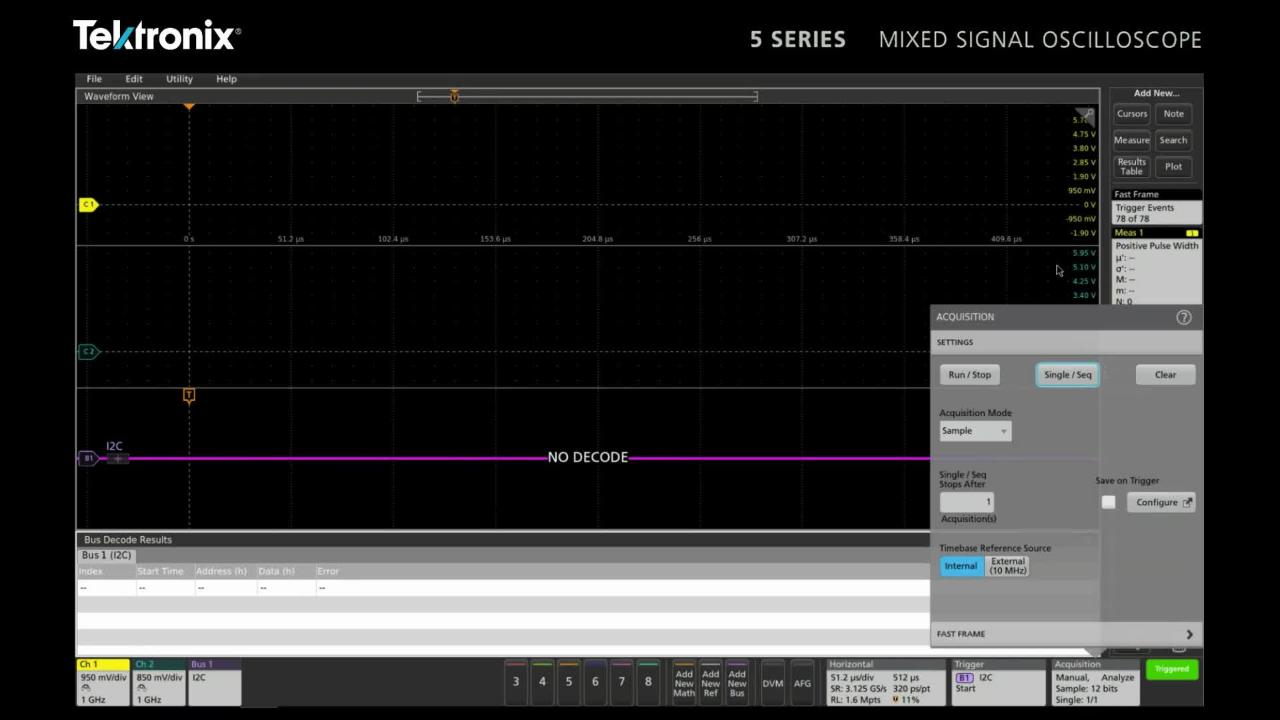

How to Set Up Bus Decode and Triggering Learn how to quickly trigger and decode serial busses.
Analyzing turn on behavior of a spread spectrum clock with Spectrum View on 4, 5 and 6 Series See how Spectrum View provides ease-of-use and the ability to achieve optimal views in both RF and Time domains simultaneously when analyzing the turn on behavior of a spread spectrum clock.  This …
CAN Bus Decode and Trigger on the 5 Series MSO This vides shows how to set up automated CAN or CAN FD bus decoding, triggering, and search on the 5 Series MSO mixed signal oscilloscope.
Capturing a Clock Frequency Glitch With RF vs Time Trigger See how an edge trigger on the RF Frequency Deviation vs Time trace isolates and captures a short duration transient in the frequency of a clock signal.  The Spectrum View capability on the 4, 5 …

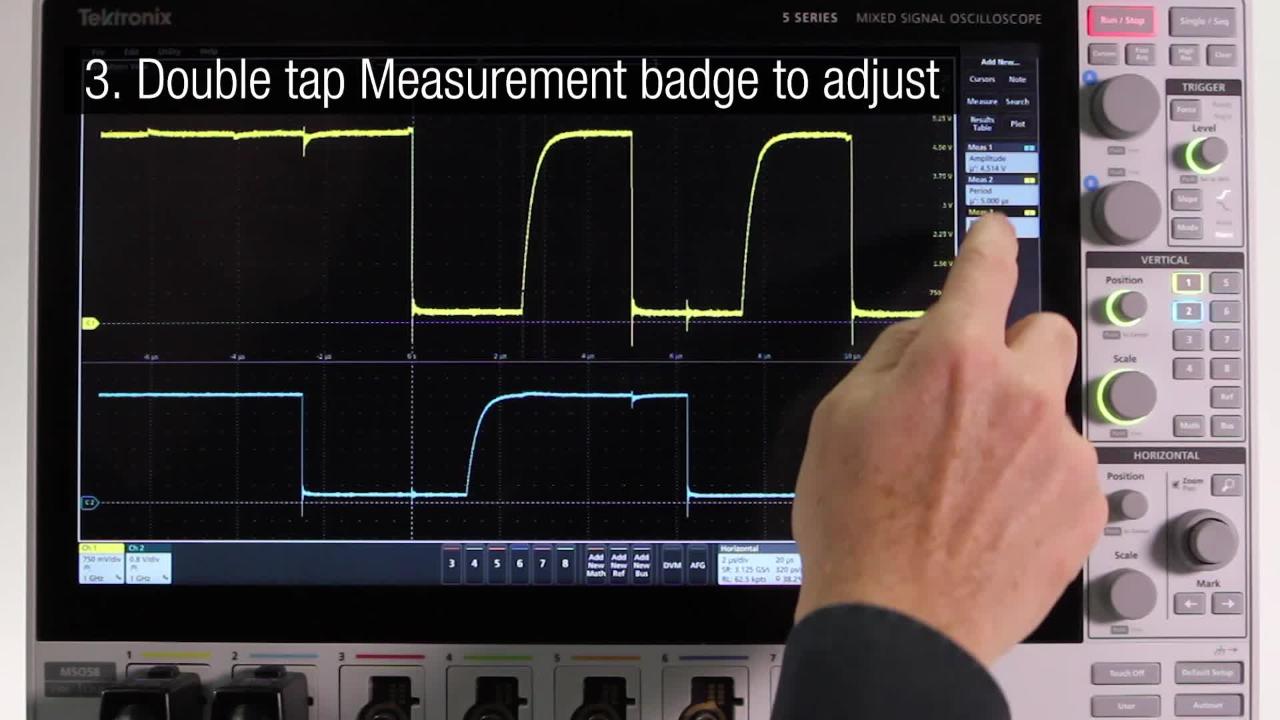

How to Make Automated Measurements Automated measurements provide quick, precise insights with a simple drag-and-drop.

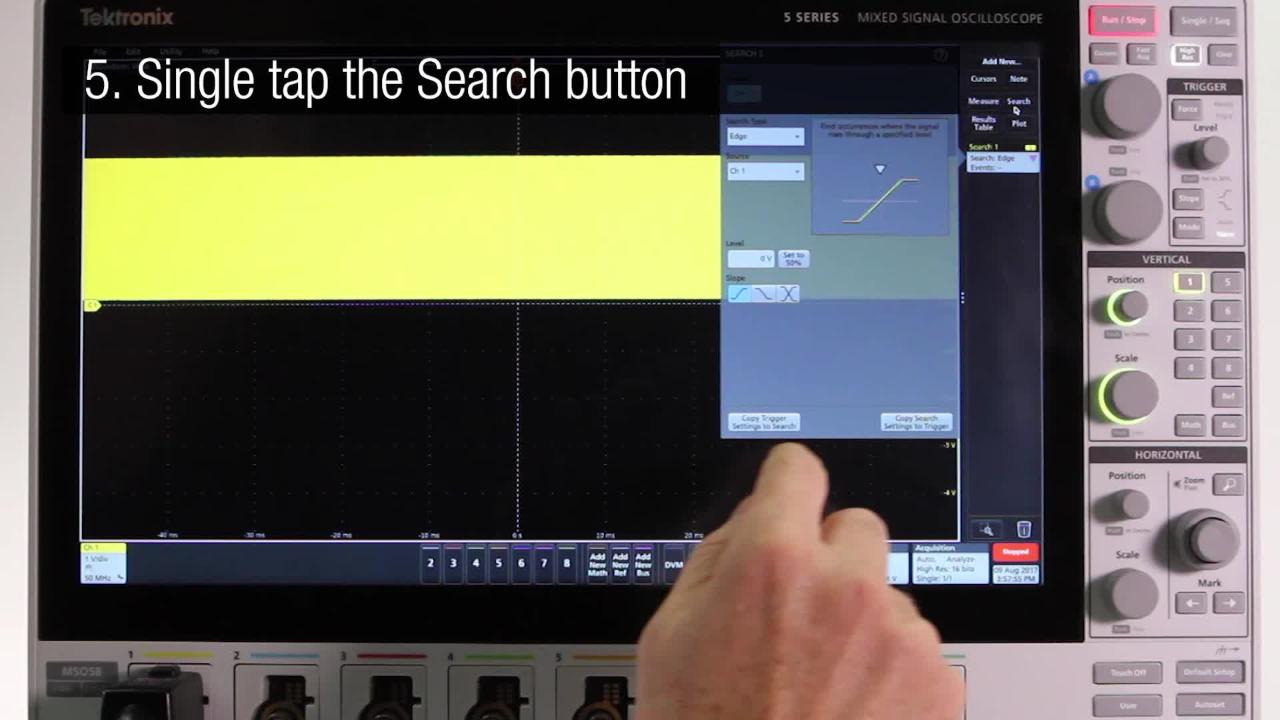

How to Use Wave Inspector to Search and Mark Events Learn how the Wave Inspector can help you quickly set up event searches and mark all occurrences across the record.
The Team Behind the 5 Series MSO Watch some of the team members behind the innovative new Tektronix 5 Series MSO talk about the challenges they faced and how they overcame them.

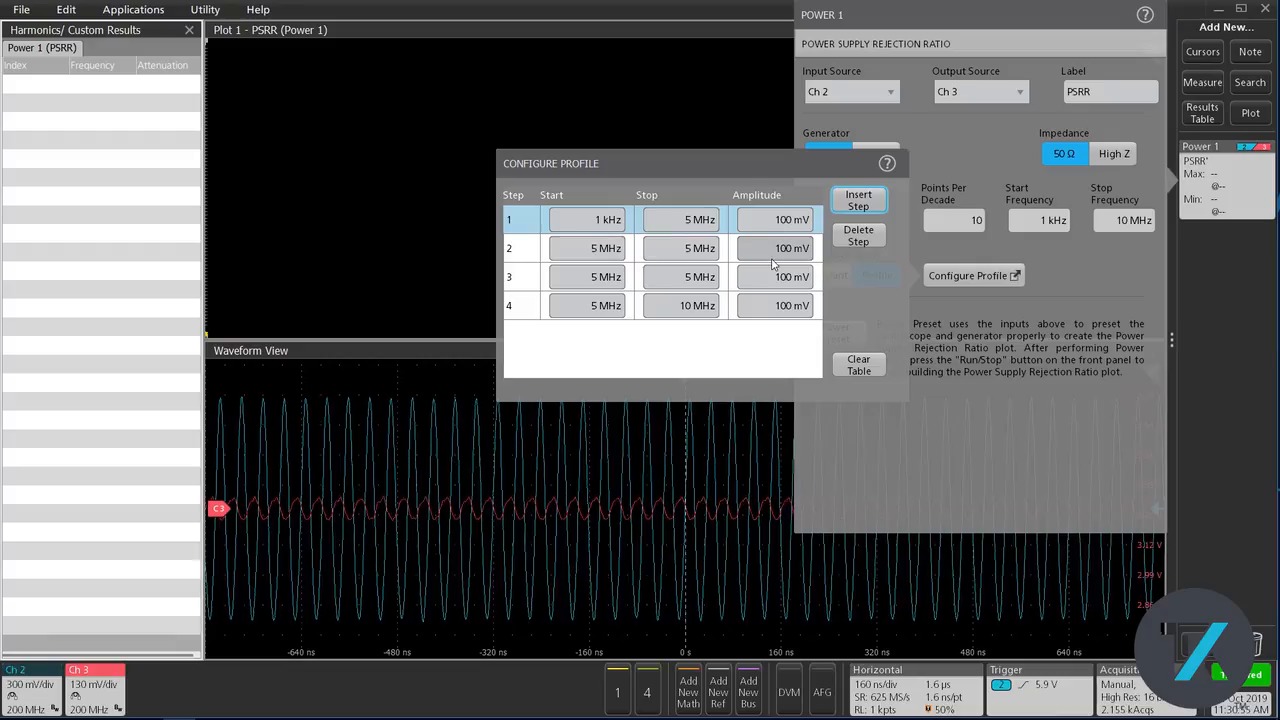

Power Supply Rejection Ratio on an Oscilloscope Learn how to get optimal results from your power supply design by checking the power supply rejection ratio. This video covers how DC-DC  converters or low voltage drop-out regulators (LDOs) …
Low amplitude RF emission analysis with RF vs Time Triggering See how the RF vs Time hardware triggering capability (Spectrum View) on the 4, 5, and 6 Series MSO oscilloscopes can capture a low amplitude RF emission.  This video focuses on the low amplitude …

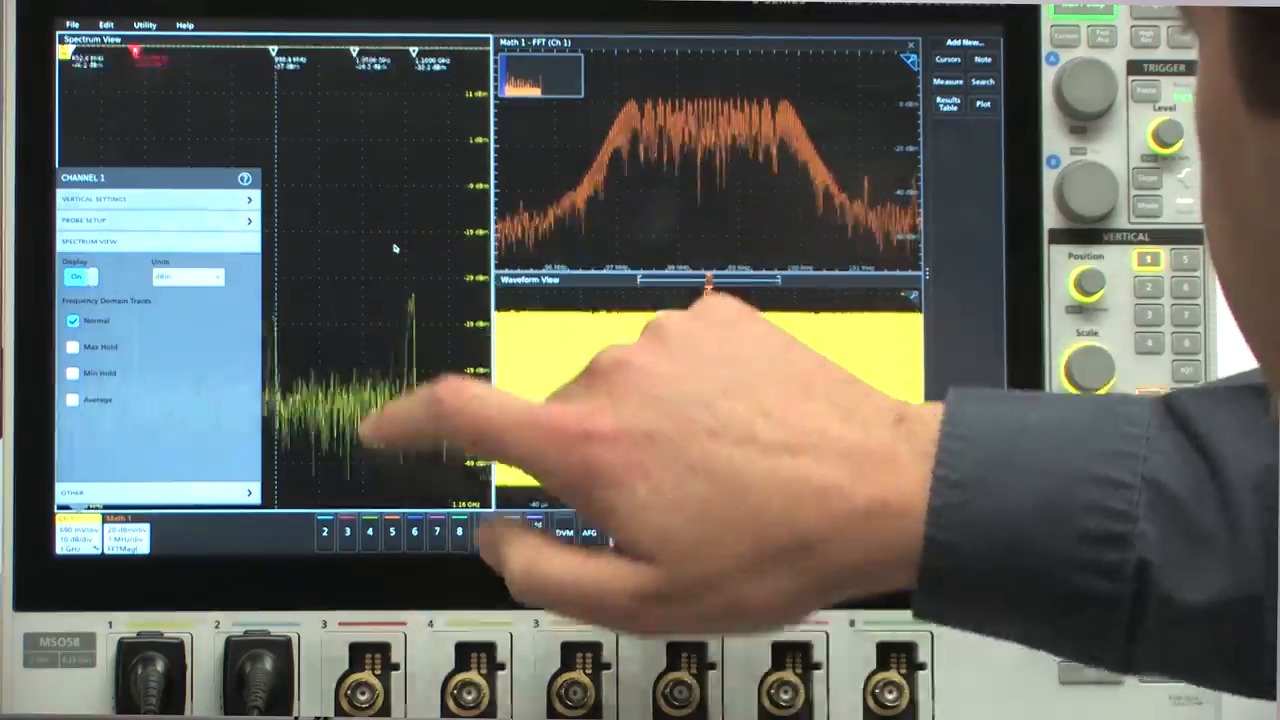

A New Way of Performing Multi-Channel Spectrum Analysis on an Oscilloscope If you're doing mixed frequency/time domain work, Spectrum View makes it easy. Learn how to set up 5 and 6 Series MSOs to display synchronized time and frequency domain views on multiple channels …

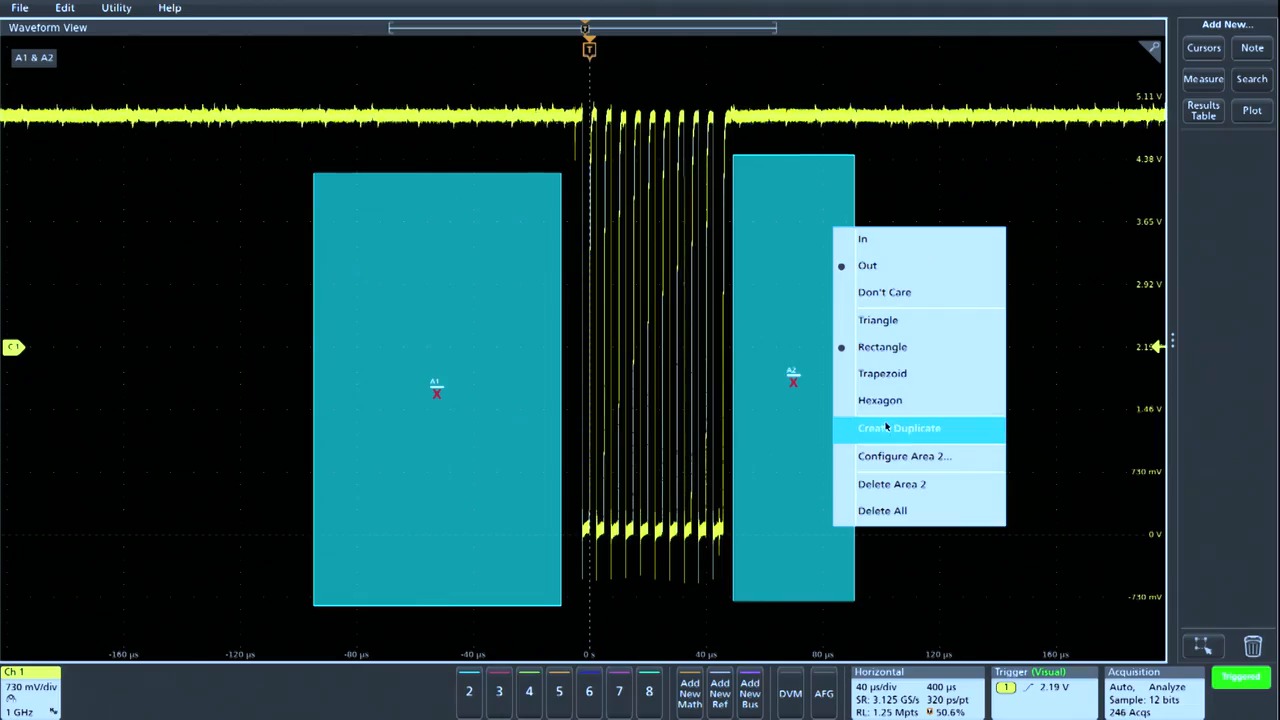

How to Use Oscilloscope Visual Triggers Build complex waveform triggers simply by drawing shapes Learn how to quickly capture bursts just by drawing a couple of boxes, and how to apply logic and add more shapes to capture increasingly complex waveforms. See how visual triggers work on the 5 …
How to use FastFrame Segmented memory on the 5 Series MSO oscilloscope Get a 6-minute introduction to the Fastframe segmented memory feature on the 5 Series MSO. FastFrame enables high-quality data with the efficient use of memory. Learn how to get off the ground …
Tips and techniques for setting up your Tektronix 4 Series, 5 Series or 6 Series MSO display Watch how easy it can be to setup and analyze waveform behavior using the highly intuitive touch interface. Setting up your measurement and debugging your system has never been easier with the …
How to use Callouts on the 4 Series, 5 Series and 6 Series Mixed Signal Oscilloscopes Learn how to annotate test results and methods with “Callouts” for easily documenting important information when sharing data across a team, recreating a measurement at a later date, or delivering …

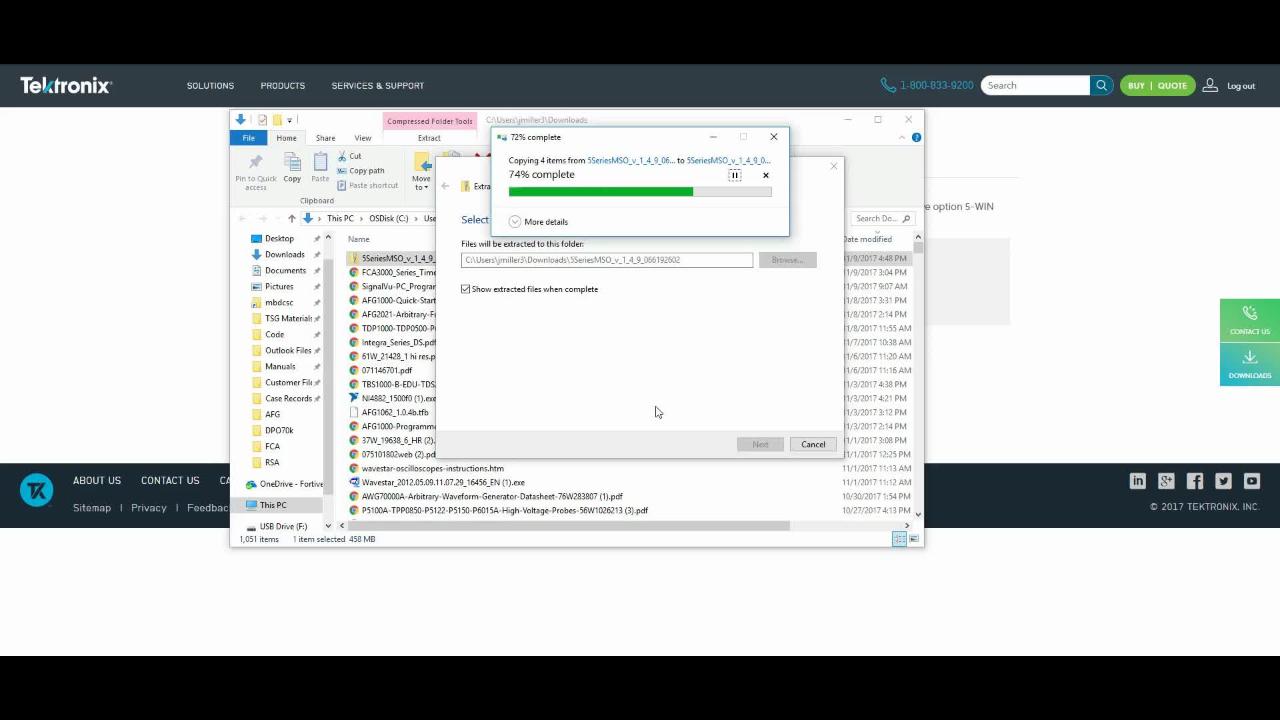

How to Install 5 Series MSO Firmware This video demonstrates how to update the firmware on the 5 Series MSO.

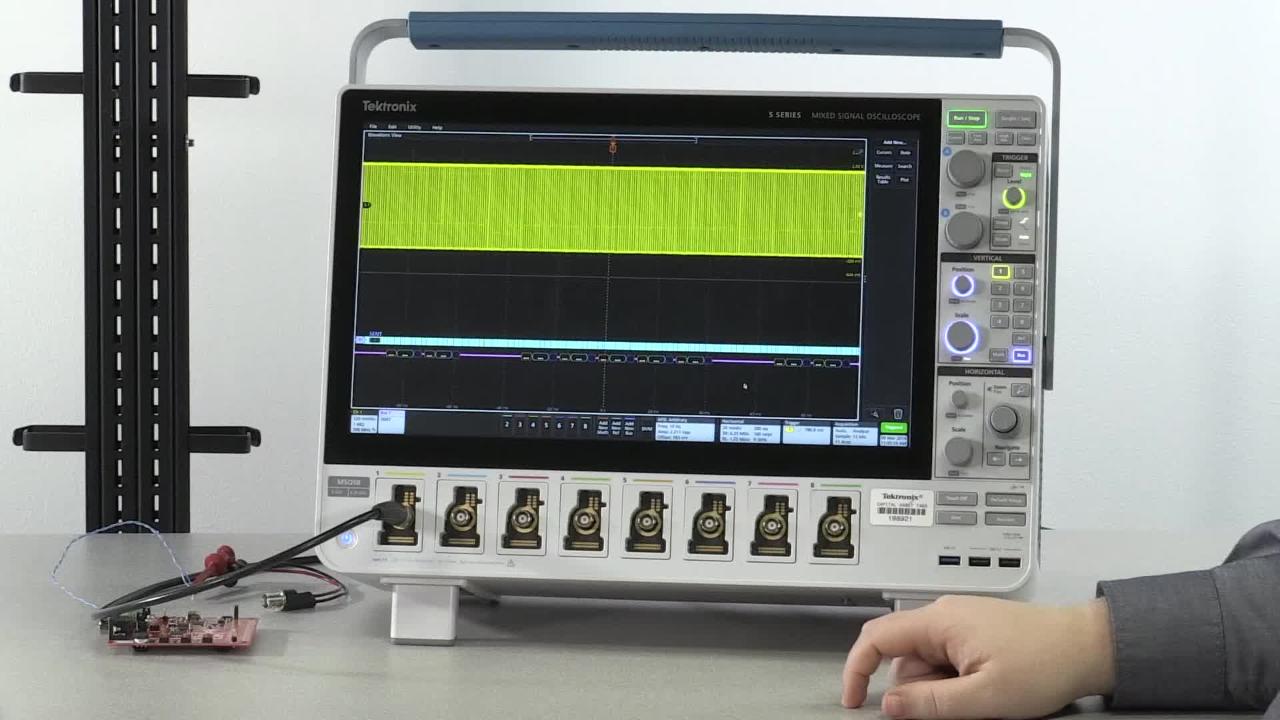

Introducing the 5 Series MSO Mixed Signal Oscilloscope Experience the 5 Series MSO, the scope that changes everything.

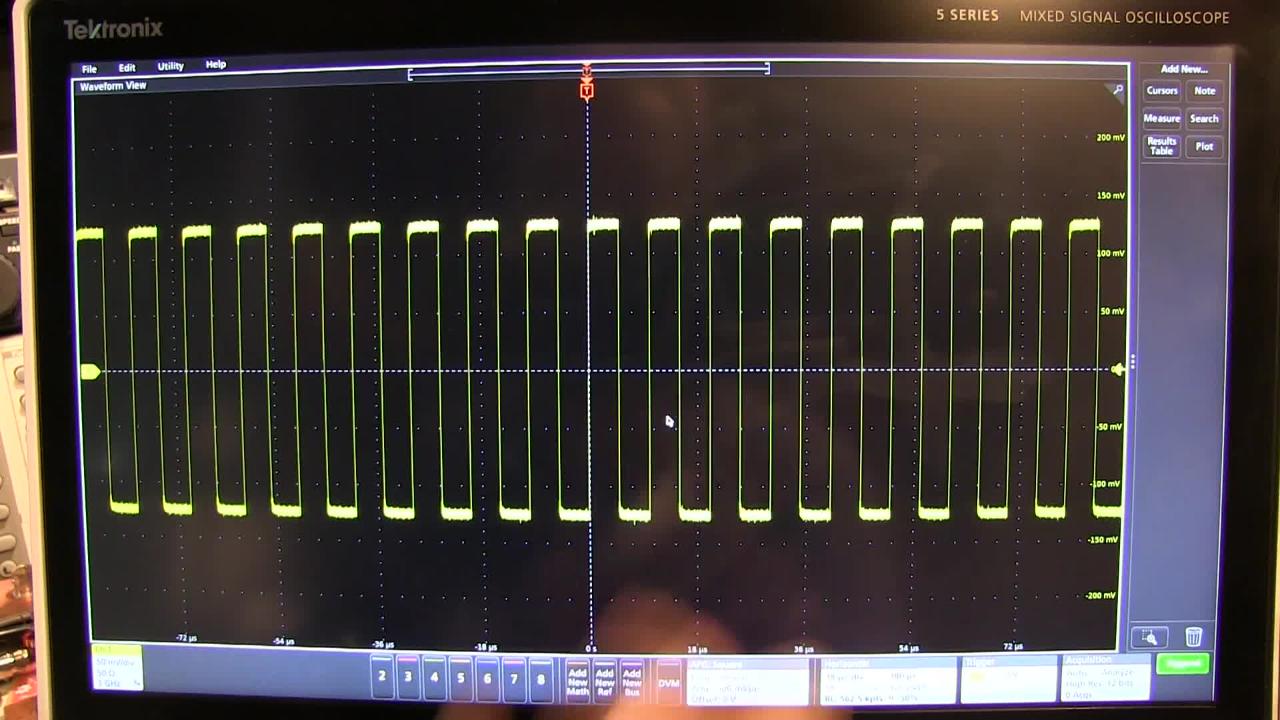

5 Series MSO Highlights Watch this short video to explore some of the great features of the new 5 Series MSO oscilloscope.
3 Phase Inverter Motor Drive Analysis (IMDA) on the 5 Series MSO During the design and validation of systems that utilize 3 Phase power, it can be difficult to correlate control systems and power electronics with the performance of the overall system. Watch how …
How to change the font size on the 4 Series, 5 Series or 6 Series MSO display Watch how to easily change the font size used on your 4/5/6 Series MSO with just a few clicks. This will make it easier to read measurement values at a distance from your scope or maximize the …

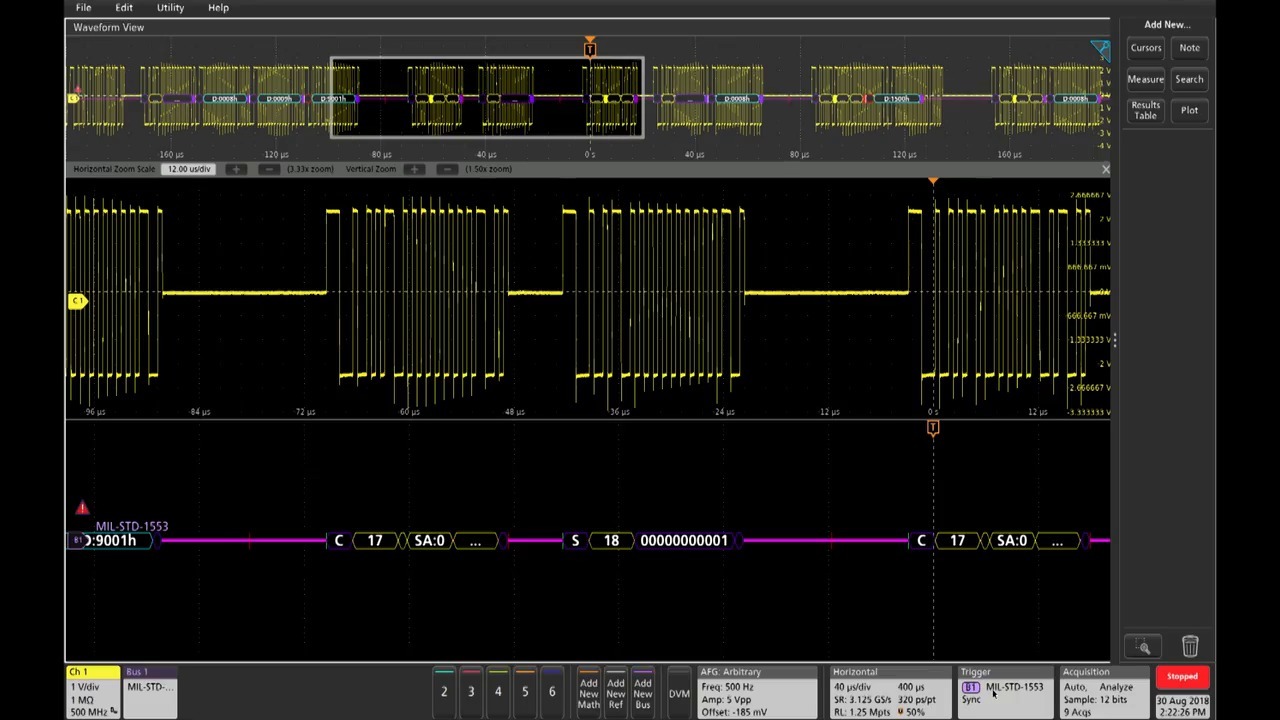

MIL-STD-1553 bus support Learn how 5 and 6 Series MSO Mixed-Signal Oscilloscopes and the optional embedded serial bus analysis software provide unparalleled system visibility by decoding MIL-STD 1553 messages, triggering …
How to Control a Tektronix Oscilloscope Over a LAN Learn how to use the eScope function to remotely control a Tektronix oscilloscope over a network without any special software. This video shows how to find the IP address of the scope and use a …

升级	描述
TLP058 逻辑探头	各探头访问任一 5 系列 MSO 上任何 FlexChannel 上的8条数字通道

增加仪器功能

升级	描述	采购详情
SUP5-AFG	增加任意函数发生器	申请试用许可证 索取报价
SUP5-DVM	增加数字电压表/触发频率计数器	注册时提供的软件升级许可文件。 立即注册。
SUP5-RL-125M	将记录长度增至 125 M 点/通道	申请试用许可证 索取报价
SUP5-WIN	增加安装 Windows 10 系统许可的可移除固态硬盘。	无法试用 索取报价

增加协议分析

升级	描述
SUP5-SR8B10B	8b10b 协议解码器和搜索
SUP5-SRAERO	航空串行触发和分析（MIL-STD-1553、ARINC429）
SUP5-SRAUDIO	音频串行触发和分析（I2S、LJ、RJ、TDM）
SUP5-SRAUTO	汽车串行触发和分析（CAN、CAN FD、LIN 和 FlexRay）
SUP5-SRAUTOEN1	100BASE-T1 汽车以太网协议解码软件
SUP5-SRAUTOSEN	汽车传感器串行触发和分析 (SENT)
SUP5-SRCOMP	计算机串行触发和分析 (RS-232/422/485/UART)
SUP5-SREMBD	嵌入式串行触发和分析模块（I2C、SPI）
SUP5-SRENET	以太网串行触发和分析（10Base-T、100Base-TX）
SUP5-SRI3C	MIPI I3C 解码和分析
SUP5-SRNRZ	NRZ 协议解码器和搜索
SUP5-SRPM	电源管理串行触发和分析 (SPMI)
SUP5-SRPSI5	PSI5 串行解码和分析
SUP5-SRSPACEWIRE	SpaceWire 协议解码和分析
SUP5-SRUSB2	USB 2.0 串行总线触发和分析（LS、FS、HS）（HS 的 ≥ 1 GHz 建议模型）

增加串行一致性分析

升级	描述
SUP5-CMAUTOEN	汽车以太网（100Base-T1 和 1000BASE-T1）自动化一致性测试解决方案
SUP5-CMUSB2	USB 2.0 自动化一致性预测试解决方案
SUP5-CMENET	以太网 (10/100/1000BASE-T) 一致性测试解决方案
SUP5-DBLVDS	适用于 5 系列 MSO 示波器的自动化 LVDS 测试解决方案
SUP5-AUTOEN-BND	汽车以太网一致性、信号分离、PAM3 分析、100BASE-T1 解码软件
SUP5-AUTOEN-SS	使用 TekExpress 自动化平台的信号分离解决方案（很小带宽 1 GHz）
SUP5-CMINDUEN10	工业以太网（10Base-T1L 长距离）自动化一致性测试解决方案
SUP5-PAM3	使用 TekExpress 自动化平台的 PAM3 自动化一致性解决方案（很小带宽 1 GHz）

增加高级分析

升级	描述
SUP5-DPM	完整的数字电源管理分析和调试解决方案（包括 DPMBAS 中的所有测量 + 抖动分析和眼图分析）
SUP5-DPMBAS	基本数字电源管理分析和调试解决方案（包括电源序列分析、瞬态分析和纹波分析）
SUP5-DJA	高级抖动和眼图分析
SUP5-IMDA	逆变器、电机和驱动器分析
SUP5-MTM	模板和极限测试
SUP5-PWR	功率分析
SUP5-SV-BW-1	频谱视图捕获带宽达 500 MHz
SUP5-SV-RFVT	频谱视图射频与时间分析
SUP5-VID	模拟视频触发（NTSC、PAL、SECAM）

升级带宽

升级	描述	采购详情
SUP5-BWxTy8	MSO58 带宽从 x 升级为 y，其中，x 和 y 均为几百 MHz	在现场把带宽很多升级到 1 GHz。 升级为 2 GHz 需要在泰克维修中心通过 IFC 或 IFCIN 选件进行安装。 从 350 或 500 MHz到1 或 2 GHz 的带宽升级中还包括每个通道附带一个 TPP1000 1 GHz 无源探头。
SUP5-BWxTy6	MSO56 带宽从 x 升级为 y，其中，x 和 y 均为几百 MHz
SUP5-BWxTy4	MSO54 带宽从 x 升级为 y，其中，x 和 y 均为几百 MHz

文章来源于测试仪器
