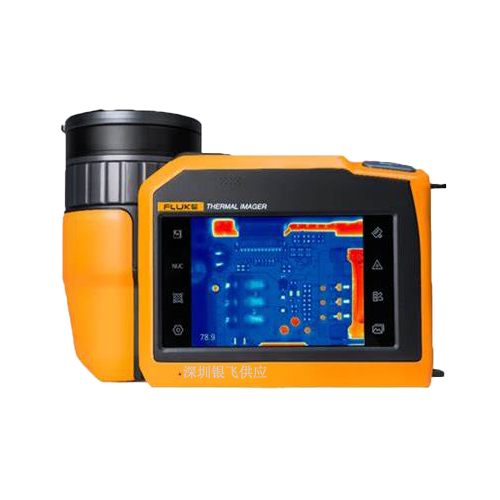

Fluke TiX1060 红外热像仪
Fluke TiX1060红外热像仪 的技术分享。产品概述开始， 福禄克 TiX1060热像仪分辨率为1024x768的新型福禄克TiX1060热像仪具有卓越的图像质量，非常适合研发工程师和科研人员。帧率高达25Hz，可保留更多细节，满足捕捉快速变化温度的测试需求。 TiX800/TiX1000 系列热像仪（以下简称产品或成像仪）是诊断红外成像相机可用于许多应用，包括设备故障排除、诊断、预防性和预测性维护、建筑诊断和能源效率评估，以及各行业的产品开发或科学研究。 成像仪在高可......
产品描述
Fluke TiX1060红外热像仪的技术分享。产品概述开始，福禄克TiX1060热像仪分辨率为1024x768的新型福禄克TiX1060热像仪具有卓越的图像质量，非常适合研发工程师和科研人员。帧率高达25Hz，可保留更多细节，满足捕捉快速变化温度的测试需求。
TiX800/TiX1000 系列热像仪（以下简称“产品”或“成像仪”）是诊断红外成像相机可用于许多应用，包括设备故障排除、诊断、预防性和预测性维护、建筑诊断和能源效率评估，以及各行业的产品开发或科学研究。
成像仪在高可见度的工业级OLED触摸屏上显示热图像。这成像仪可以将图像保存到内部存储器或可移动SD存储卡中。您可以转移图像和数据存储在内部存储器或存储卡上，使用Type-C USB存储到 PC成像仪上的2.0高速接口和PC上的USB端口。您可以传输全辐射测量通过HDMI接口将视频实时传输到显示器、电视或其他视频显示设备。
该成像仪包括专业的热图像分析软件–SmartViewTM IR。这SmartView IR是一款高性能、专业的热图像分析软件，用于热图像分析、全辐射视频分析和专业热图像报告。
对于户外应用，TiX1060配备了自动对焦技术，允许用户从远处对焦目标。结合1至35倍的连续数码变焦，用户可以清晰地查看远处目标上的小细节。成像仪由智能可充电锂离子电池供电。方便户外使用。
福禄克 TiX1060红外热像仪配备全180度铰接镜头，使热像师能够轻松地在物体上方、下方和周围导航，从而轻松预览和捕获图像。结合超分辨率技术，TiX1060可以实现2048×1536像素的图像分辨率。
Fluke TiX1060热像仪主要特点
高清画质
非制冷红外探测器支持的1024×768分辨率。
<30mK 热灵敏度，可捕获清晰的图像。 手动/自动对焦技术可实现精确对焦并高效捕获高质量图像。 无可比拟的捕捉灵活性全180度铰接镜头。5.5英寸OLED触摸屏，操作高效方便。 锂电池提供> 3.5小时的电池续航时间，适合户外使用。
高级板载分析和流媒体
用于研发应用的SmartView IR PC软件。
视频流输出，用于可视化辅助显示器上的最小温度变化。
福禄克 TiX1060标准配置（装箱清单Accessories）
1、型号： Fluke TiX1060热像仪主机
2、福禄克 TiX1060热像仪（标准镜头）
3、可充电锂离子电池（3 节）
4、充电器
5、镜头盖
6、USB连接线
7、HDMI线
8、高速SD卡
9、读卡器
10、安全信息
11、快速参考指南
12、手带
13、颈带
14、硬质手提箱
可选镜头（Optional lens）
TIX1000 4 倍长焦、TIX1000 9 倍长焦
TIX1000 2 倍长焦、TIX1000 12C 长焦镜头
TIX1000 2 倍宽，TIX1000 46 倍宽
TIX1000微型，TIX1000 50UM 微型
规格书Specifications: Fluke TiX1060Thermal Camera
| Detector | |
| Image resolution | 1024 x 768 |
| Super Resolution | Yes (enhanced to 2048x1536 pixels) |
| Thermal sensitivity (NETD) | <30 mK @ 30 °C |
| Field of View (FOV) | 25° x 19° (standard lens) |
| Spatial Resolution (IFOV) | 0.43 mrad |
| Digital zoom | 1x to 35x continuous zoom |
| Detector type | Focal Plane Array (FPA), uncooled infrared detector |
| Detector pixel spacing | 17 μm |
| Spectral range | 8 to 14 μm |
| Lens aperture | F1.0 |
| Lens recognition | Auto |
| Minimum focus distance | 0.5 m |
| Focus System | Auto [motorized focus]/Manual |
| Frame rate | 13 Hz, full window; 25 Hz, 1/2 window |
| Measurement and Analysis | |
| Temperature range |
-40 °C to 700 °C（-40 °C to 150 °C; 0 °C to 350 °C; 0 °C to 700 °C) High temperature option: expanded to 2000 °C (300 °C to 2000 °C) |
| Temperature accuracy |
±1 °C or 1% of rdg (whichever is greater), -10 °C to 150 °C temperature measurement range ±2 °C or 2% of rdg. (whichever is greater), other temperature ranges |
| Auto high/low temperature capture | Yes |
| Reference temperature compensation | Yes. The full-screen and measurement mark temperature are displayed as the difference between the actual temperature and the fixed temperature |
| Automatic temperature difference calculation |
Calculation of the difference between measurement marks or between a measurement mark and the fixed reference temperature |
| Point temperature measurement | 10 points |
| Area temperature measurement | 5 areas (rectangle or circle) |
| Line temperature measurement | 10 lines |
| Temperature measurement methods |
The highest and lowest temperature can be set within an area, and the highest/lowest temperature point can be automatically located |
| Correction settings | Emissivity, Reflected Temperature (Background Temperature), Transmittance, Humidity, Ambient Temperature, Test Distance, Atmospheric Transmission Correction |
| Full-screen emissivity correction | 0.01 to 1.00 in steps of 0.01, built-in common material emissivity table |
| Area emissivity correction | Yes |
| On-imager analysis | Perform point, area and line temperature analysis on saved thermal images |
| Analysis software | Standard SmartView IR software |
| Supported languages | Simplified Chinese/English |
| Image Display | |
| Display | OLED touchscreen, 170° visual range |
| Display size | 5.5 inches |
| Display contrast | 100000 : 1 |
| Display resolution | 1920 x 1080 pixels, 1080P Ultra HD display |
| Digital image enhancement | Yes |
| Settings for On-Screen Display (OSD) |
Yes. Users can define OSD, such as the maximum, minimum, average temperature, full-screen emissivity and reflected temperature |
| Settings for information display of temperature measurement mark | Yes. Each temperature measurement mark can be set separately, such as emissivity |
| Built-in digital camera | 5.0 MP, auto focus |
| LED torch/flashlight | Yes |
| Picture-in-Picture (PIP) | Yes |
| Color palettes | 30 palettes (15 standard palettes, 15 inverted palettes) |
| Manual image adjustment | Yes |
| Auto image adjustment | Yes |
| Minimum temperature span (in manual mode) | 2 °C |
| Minimum temperature span (in auto mode) | 4 °C |
| Video | |
| Fully-radiometric infrared video recording | Recorded to the Imager and PC |
| Fully-radiometric infrared video recording (frame rate adjustable) | Adjustable frame rate range: 1 to 12 Hz |
| Fully-radiometric infrared video streaming | Transfer via USB 2.0 |
| Non-radiometric infrared video streaming | Transfer via HDMI |
| Auto capture | Customized frame rate or interval |
| Professional Function | |
| Color alarm (isotherm) | Yes |
| Audible alarm | High/low temperature alarm |
| Automatic naming of thermal images | QR code supported |
| Voice annotation | Yes. 200 s of voice annotation for every image |
| Text annotation | Simplified Chinese/English/Numbers |
| Storage and Transfer | |
| Image viewing | Thumbnail view navigation and view selection |
| Storage medium | Built-in 16 GB flash + 128 GB high-speed SD card |
| SD card | Yes |
| IR image file format | Standard JPEG format, including measurement data |
| Video file format | .mp4, .IS5 |
| Visible image file format | Standard JPEG format, automatically associate with infrared images |
| Audio | Yes |
| Transfer interface | USB Type-C, HDMI, SD card, Bluetooth |
| Bluetooth transfer | Yes. The saved files can be transferred to a PC via Bluetooth. |
| GPS | GPS location information is automatically added to each static image captured outdoors |
| Remote display viewing |
Yes. View thermal video stream on your PC or a display terminal (Connect to the Smartview IR software on PC via USB, or connect to a display terminal via HDMI) |
| Remote control operation | Yes. Through the SmartView IR Software |
| USB function |
Transfer fully-radiometric thermal image video stream to a PC; read the Imager’s internal flash memory data; read SD card data |
| USB | USB 2.0 |
| Antenna | Internal |
| Power and Environment | |
| Battery type | 3 Rechargeable Li-ion batteries |
| Battery life | > 3.5 hours for continuous use (ambient temperature of 25 °C) |
| Weight | 1822 g (with battery) |
| Dimensions | 151 mm x 214 mm x 92 mm |
| Rotatable lens | 180° rotatable lens |
| Test Standards |
EN 61326-1 EN 301489-1/-17 EN 300328 EN 303413 IEC 301489-19 EN 60825-1 FCC 47 CFR Part 15 KS C 9832:2019 KS C 9835:2019 |
| Tripod mounting base | UNC 1/4''-20 standard tripod mounting thread |
| Warranty | 2 years for the Imager, 10 years for the detector |
| Recommended calibration period | 2 years (assuming normal operation and aging) |
