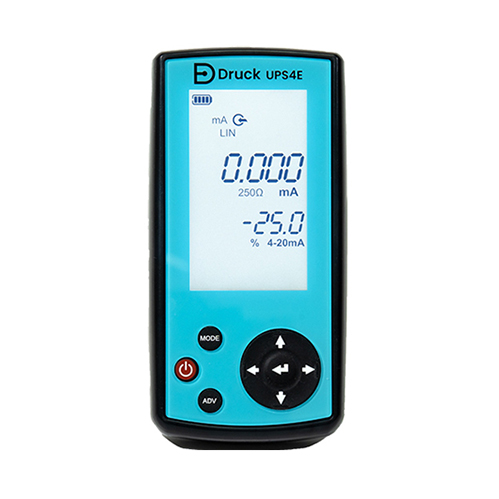

Druck UPS4E 回路校验仪
Drucks UPS4E回路校验仪 ，英文名称是New handheld electrical loop calibrator。 UPS4E核心参数资料DATASHEET 德鲁克 回路校验仪 回归了！Druck is back in the loop! 德鲁克Druck的新款UPS4E是一款坚固且极其紧凑的回路校准器，设计为可以单手操作。UPS4E足够小，可以放入工作服的上胸口口袋，是Druck UPS 系列的最新产品，继承了备受喜爱的UPS-II和UPS-III。 Drucks new UPS4E is a rugged and extremely compact loop calibrator, designed to be operated with one hand. Small enough to fit in the top pocked of an overall, the ......
产品描述
Druck's UPS4E回路校验仪，英文名称是New handheld electrical loop calibrator。
UPS4E核心参数资料DATASHEET
德鲁克回路校验仪回归了！Druck is back in the loop!
德鲁克Druck的新款UPS4E是一款坚固且极其紧凑的回路校准器，设计为可以单手操作。UPS4E足够小，可以放入工作服的上胸口口袋，是Druck "UPS" 系列的最新产品，继承了备受喜爱的UPS-II和UPS-III。
Druck’s new UPS4E is a rugged and extremely compact loop calibrator, designed to be operated with one hand. Small enough to fit in the top pocked of an overall, the UPS4E is the latest addition to the Druck “UPS” series, following on from the much-loved UPS-II and UPS-III.
Druck’s new UPS4E is a rugged and extremely compact loop calibrator, designed to be operated with one hand. Small enough to fit in the top pocked of an overall, the UPS4E is the latest addition to the Druck “UPS” series, following on from the much-loved UPS-II and UPS-III.
替代传统的UPS-III（和UPS-II）回路校准器，UPS4E是一款现代、具有成本效益的设备，可在具有竞争力的交货时间内提供。
Replacing the legacy UPS-III (and UPS-II) loop calibrator, the UPS4E is a modern, cost-effective device that is available on competitive lead times.
Replacing the legacy UPS-III (and UPS-II) loop calibrator, the UPS4E is a modern, cost-effective device that is available on competitive lead times.
UPS4E是一种手持设备，用于测试和校准工业控制系统中的电流环。它可以源、测量或模拟精确的电流——通常在4–20毫安范围内——使技术人员能够验证传感器、发射器和控制系统的性能。它还提供24V回路电源，是过程自动化环境中故障排除和维护的必备工具。
The UPS4E is a handheld device used to test and calibrate current loops in industrial control systems. It can source, measure, or simulate a precise electrical current—typically in the 4–20 mA range—allowing technicians to verify the performance of sensors, transmitters, and control systems. It also provides 24V loop power, making it an essential tool for troubleshooting and maintenance in process automation environments.
The UPS4E is a handheld device used to test and calibrate current loops in industrial control systems. It can source, measure, or simulate a precise electrical current—typically in the 4–20 mA range—allowing technicians to verify the performance of sensors, transmitters, and control systems. It also provides 24V loop power, making it an essential tool for troubleshooting and maintenance in process automation environments.

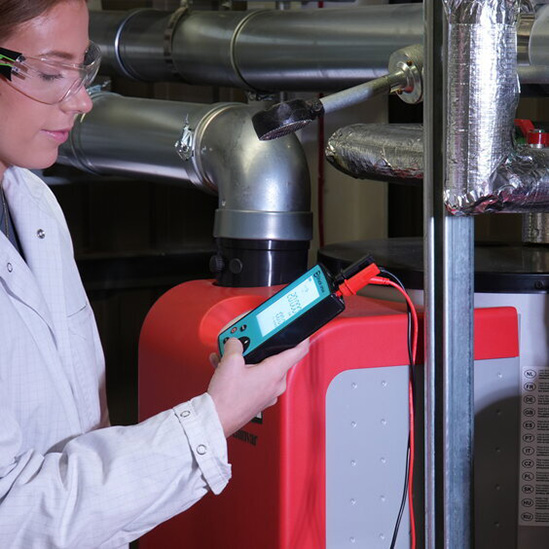

UPS4E 应用图像我们回来了！
UPS4E Application Image，WE ARE BACK IN THE LOOP!
UPS4E 采用最先进的电气校准技术，创造出一种可靠、经济高效的回路校准仪，具有易于阅读的显示屏和简单易用的节省时间的功能，包括步骤、范围和阀门检查。
The UPS4E utilises the most advanced electrical calibration technology to create a dependable, cost-effective loop calibrator with an easy-to-read display and simple-to-use time saving features including step, span and valve check.
UPS4E 非常适合单手操作，无论是什么操作。UPS4E 设计用于快速启动和使用，使用 AA 电池供电。
The UPS4E is ideal for single handed operations, regardless of the operation. Engineered for quick start and use, the UPS4E is powered by AA batteries.
Druck UPS4E回路校验仪为效率而设计
为效率而设计播放视频UPS4E应用图像（2）UPS4E特点与优势Druck的UPS4E是一款现代电气环路校准器，旨在满足关键维护应用的需求。UPS4E吸收了仪器技术员、维护工程师和自动化专业人士的反馈，代表了环路校准器性能的巅峰。
Engineered for efficiency
Play Video

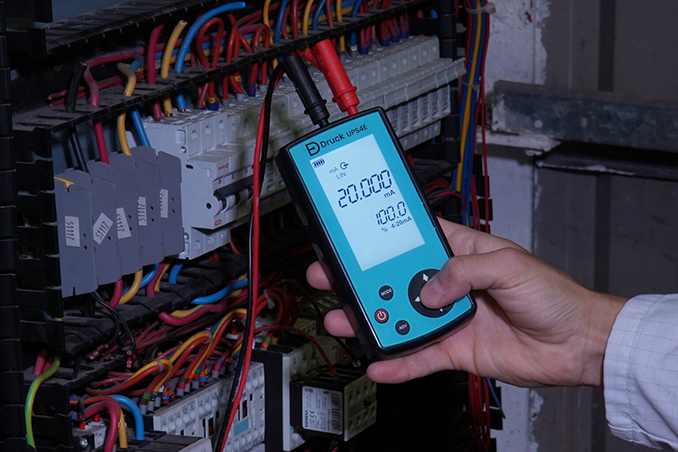

UPS4E Application Image (2)
UPS4E Features & Benefits
Druck's UPS4E is a modern electrical loop calibrator, designed for essential maintenance applications.
Incorporating feedback from instrumentation technicians, maintenance engineers and automation professionals, the UPS4E represents the pinnacle of loop calibrator performance.
测量或源0到24 mA→Measure or source 0 to 24 mA
准确度0.01%读数1个计数→Accuracy 0.01% of reading+1 count
双mA和%读数，线性或流量步进→Dual mA and % readout, linear or flow
范围检查、阀门检查、斜坡→Step, span check, valve check, ramp.
30 VDC测量和连续性检查→30 VDC measurement and continuity check
100,000个数据记录点→100,000 datalog points
内置250Ω电阻以支持HART操作→In built 250 Ω resistor for supporting HART operation
24 V DC回路电源，具有mA测量或源模式→24 V DC loop power with mA measure or source mode
自动关机以延长电池寿命→Auto shutdown to conserve battery life
通过AA电池供电→Powered through AA batteries
