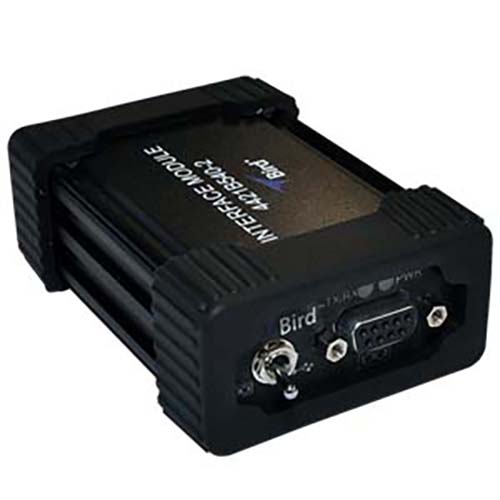

Bird - 4421B540-2 Precision RF Power Sensor Interface Module
product specifications:
| Attribute | Specification |
|---|---|
| Item Number | 4421B540-2 |
| Item Name | Interface Module |
| Power Range | 100 mW to 25 kW Full Scale, Sensor Dependent |
| Frequency Range | 100 KHz to 3 GHz, Sensor Dependent |
| VSWR Range | 1.0 to 199.9, Sensor Dependent |
| Measurements | Forward Average Power, Reflected Average Power, VSWR |
| Speed | 2 readings per second from Sensor |
| Interfaces |
- Latch-n-Lock to Sensor - USB 2.0, Type B - Serial RS-232 |
| System Power Supply | 12 VDC Input from 115/230 VAC, 50/60 Hz Adapter |
| Compatible Devices | 4020 Series, 4027 Series, and 4028 Series Sensors |
| Standard Accessories Included |
- 4421-038 Cable, Latch-n-Lock - 5B2229-1224G-1 Power Supply - 5A2653-6L Cable, USB |
| Operating Temperature | -10 to +50 °C (+14 to +122 °F) |
| Storage Temperature | -40 to +80 °C (+40 to +176 °F) |
| Dimensions | 4.1” x 2.8” x 1.4” (105 x 72 x 36 mm) |
| Weight | 0.75 lbs (1.7 kg) |
The Bird 4421B540-2 Interface Module serves as a sophisticated link between computers and the company's precision RF power sensors from the 4020, 4027, and 4028 series. It boasts a versatile power range that varies based on the connected sensor, spanning from 100 mW to 25 kW full scale, and a frequency range that extends from 100 KHz up to 3 GHz, again sensor-dependent.This module captures Forward Average Power, Reflected Average Power, and Voltage Standing Wave Ratio (VSWR) measurements at a swift rate of two readings per second directly from the sensor. It connects to sensors via the proprietary Latch-n-Lock mechanism, and communicates with computers through USB 2.0 Type B and Serial RS-232 interfaces.
Powered by a 12 VDC input adapted from either 115/230 VAC at 50/60 Hz, the 4421B540-2 is fully compatible with a range of Bird field sensors. The package comes with standard accessories including a Latch-n-Lock cable, a power supply, and a USB cable to facilitate immediate setup and operation.
This interface module can operate in a broad temperature range, functioning optimally between -10 to +50 °C (+14 to +122 °F), and can be safely stored across a wider temperature span from -40 to +80 °C (+40 to +176 °F). Compact and lightweight, it measures 4.1 inches by 2.8 inches by 1.4 inches (105 mm x 72 mm x 36 mm) and weighs approximately 0.75 lbs (1.7 kg). Overall, the Bird 4421B540-2 Interface Module presents a highly adaptable and efficient solution for integrating Bird’s precision RF power sensors into computer-controlled systems across various applications.
