Bird IQC-PC8 Series High Speed Data Offload Lightning Fast Data Transfer

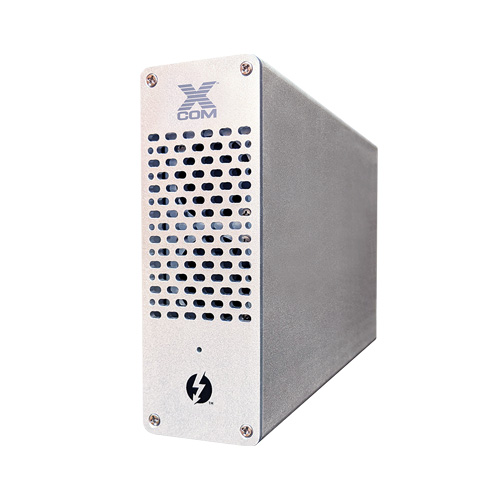

Bird - IQC-PC8 Series High Speed Data Offload Lightning Fast Data Transfer The IQC-PC8 Series leverages the blazing speed of Thunderbolt™ 3 technology to transfer data from the IQC5000B and IQC90000A series of capture and record devices to laptops and computers at a transfer rate of up to 40GB per second. That’s the equivalent of 4 lanes of a PCIe interface in one Thunderbolt connection! This ultra quiet, low profile unit is easy to install and and is up and running in no time. Simply connect the IQC-PC8 to the IQC5000B or IQC90000A with a PCIe cable then connect to a PC with a Thunderbolt cable. It’s that easy!
FEATURES
- Data transfer rate of up to 40GB per second.
- Supports daisy chain connections of up to six Thunderbolt devices.
- FA great solution for laptops without a PCIe slot.
- Slim design with a small footprint.
- Cooled with Dual ultra-quiet, high efficiency cooling fans.
product specifications:
| Product Specification | Description |
|---|---|
| Item No | IQC-PC8 Series |
| Item Name | High-Speed Data Offload Device |
| Performance | Up to 500 MB/s data transfer from IQC product family (Note: Data transfer rate depends on multiple factors including the target computer, storage device, etc.) |
| System Requirements | Windows 10 OS, 16GB Memory, Thunderbolt™ 3.0 Port |
| Power Supply |
External: 60 W Input AC: 100-240 V Output: 12 V, 5 A |
| MTBF | 900,000 hours |
| Connectors |
Host Ports: 2x Thunderbolt™ 3 Ports Supports daisy-chaining of up to six Thunderbolt™ devices; backward compatible with Thunderbolt™ 2 devices. Device Port: x4 PCIe expansion over cable (4 lanes PCIe 2.0) |
| Physical |
Size: 2.25" x 6.42" x 10.12" (58 x 164 x 258 mm) Weight: 5.5 lb (2.5 kg) |
| Certifications |
RoHS Compliant FCC Certified CE Certified |
