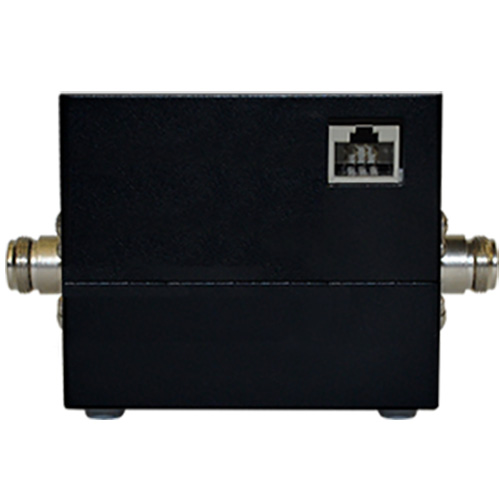

Bird - 4028 Series Directional Thruline RF Power Sensors High Accuracy for Precision High Power Applications The Bird 4028 Series RF Directional Thruline Power Sensors are designed specifically for use for use in high power LCD, TFT and Solar processing as well as other precision high power applications. Because accuracy is critical, these sensors are capable of ±2% accuracy at the calibrated frequency and power level which can improve accuracy and long-term repeatability for significant improvements on your process yields. Multiple sensor models are available for measurement applications from 1 kW to 25 kW to over a 250 kHz to 30 MHz frequency range. Calibration is traceable to the National Institute of Standards and Technology (NIST), providing additional confidence in sensor measurement.

PRODUCT FEATURES

• Specifically designed for for use in high power LCD, TFT and Solar processing and other precision high power applications up to 50 kW
• ±2% accuracy at specified frequencies and power levels minimizing poor production yields
• Models do not need to be field calibrated before use and only need to be calibrated once every year
• Plug and Play with the 4421A Series Multifunction Power Meter
• Dozens of connector options available
• Calibration traceable to the National Institute of Standards and Technology

FOR USE WITH

• 4421A Multifunction Power Meters
• SCC8 Calibration Cart

MODEL SELECTIONS

Model	Freq. Range	RF Power	Cal. Freq. (Typical)
4028A250K	250 - 400 kHz	1.0 - 20 kW	250, 400 kHz
4028A400K	400 - 550 kHz	1.0 - 20 kW	400 kHz
4028A2M	1.5 - 2.5 MHz	1.0 - 25 kW	1.8, 2.0, 2.17 MHz
4028A3M	2.5 - 3.5 MHz	1.0 - 25 kW	2.5, 3.2, 3.5 MHz
4028A4M	3.5 - 4.5 MHz	1.0 - 25 kW	3.5, 4.0 MHz
4028A10M	10 - 15 MHz	1.0 - 25 kW	10.0, 13.56, 15.0 MHz
4028A25M	25 - 30 MHz	1.0 - 25 kW	25.76, 27.12, 28.48 MHz
4028B3M	2.5 - 4 MHz	1.0 - 25 kW	2.5, 3.2, 3.5 MHz
4028B10M	10 - 15 MHz	1.0 - 25 kW	10.0, 13.56, 15.0 MHz
4028C10M	10 - 15 MHz	500W - 50kW	10.0, 13.56, 15.0 MHz
