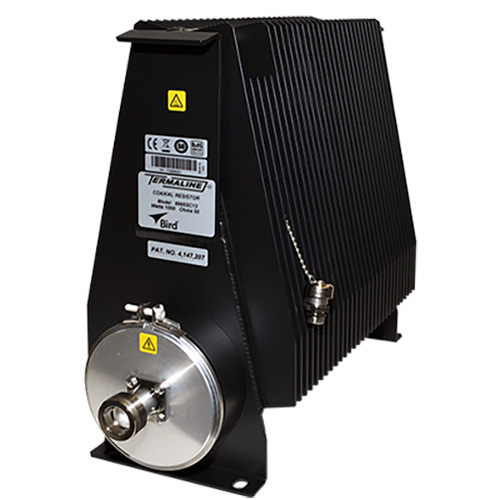

Bird - 8865SC13 1 KW, DC to 28 MHz Precision RF Load 8865SC13, 13.56 MHz Ultra Stable Oil-Dielectric RF Termination For maximum process repeatability and consistency, modern plasma applications require precise RF power regulation and control. A key component in ensuring accurate & repeatable RF power delivery to the chamber is calibration, regulation & monitoring of the RF generator. Bird now offers ultra-stable, low VSWR loads for quick and precise measurement of generator power output when used with precision power sensors such as the Bird 4020 series. The 8865SC13 not only provide low VSWR but also less than 0.1 dB total change in VSWR at process critical frequencies. There is no need for load warm-up or risk of repeatability due to calibration for different lengths of time. This can minimize the errors associated with this calibration and control one of the more critical process variables.
