Laversab ARTS-7000
Avionics Radio Test Set:ARTS-7000
The Laversab ARTS-7000 is a multifunction all-in-one Avionics Radio Test System – ARTS. It is designed to meet all aircraft radio test requirements in a single unit. The ARTS-7000 is controlled wirelessly – whether from inside the cockpit or around the aircraft. It is controlled via a simple yet intuitive touch-screen interface. The ARTS-7000 is built to reduce upfront costs, simplify aircraft testing, and cover both current & future radio test requirements.
Standard tests:
●Radio Communication
●Navigation
●Distance Measuring Equipment
●Mode S
●ADSB
●Emergency Location Transmitters
Optional tests:
●TCAS
●UAT
●GPS
The ARTS-7000 is user configurable and expandable to meet future avionics requirements. It is built to test any airborne platform, including General aviation, Commercial airliners, helicopters, and military applications.
●Radio Communication
●Navigation
●Distance Measuring Equipment
●Mode S
●ADSB
●Emergency Location Transmitters
Optional tests:
●TCAS
●UAT
●GPS
The ARTS-7000 is user configurable and expandable to meet future avionics requirements. It is built to test any airborne platform, including General aviation, Commercial airliners, helicopters, and military applications.
Choose the set of capabili es you need: COM, NAV, DME, ELT, Transponder, ADS-B, TCAS, UAT, GPS Simula on, VSWR, Air Data integra on.
A new concept in Tester/Aircra什/Technician integra on.

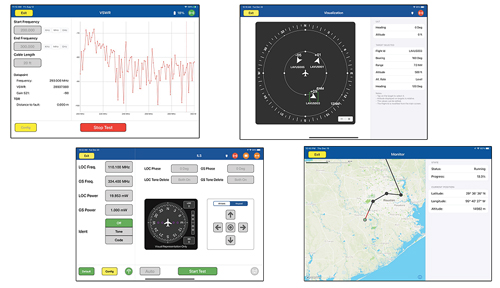

Commercially available tablets are used to control the ARTS, crea ng a cost-effec ve and simple test setup. With clear menus, hot keys, predefined scenarios, customizable limits, and intui ve func ons, the ARTS is easy to learn and use.
Each test func on has a dedicated page giving the operator full access to test parameters, configura on, and results. All test func ons can be setup and completed by a single technician. The familiarity of tablets and the simplicity of the ARTS so ware minimizes training me. If you can use a tablet, you can operate the ARTS.
From simple Go/No-Go tests to a full engineering diagnos c – the ARTS provides all the capabili es, speed and details that you need.
CAPABILITY & BASE SPECIFICATIONS
CAPABILITY & BASE SPECIFICATIONS
| COMMUNICATIONS |
AM / FM HF SSB SelCal VDL Mode 2 (available 2023, op onal) |
||||||
| NAVIGATION |
VOR ILS - Localizer & Glide Slope Marker Beacon |
||||||
| ELT | 121.5 / 243 / 406 MHz | ||||||
| DME |
DME DME & ILS DME & VOR |
||||||
| TRANSPONDER |
Mode S ATCRBS Mode A & C ADS-B IN/OUT TIS & TIS-B 1090 MHz (op onal) UAT 978MHz: TIS-B, FIS-B, ADS-B (op onal) |
||||||
| TCAS | TCAS 1 & 2, ACAS (op onal) | ||||||
| GPS | GPS Signal Simulator | ||||||
| VSWR |
VSWR meter Distance to Fault |
||||||
| TOOLS |
Power meter Frequency counter |
||||||
| AIR DATA INTEGRATION | ARTS-7000 & Laversab ADTS integra on | ||||||
| POWER REQUIREMENT |
90-260 VAC, 47-65 Hz or 28 VDC, 25 W Or Removable ba计ery: 8-hour opera on |
||||||
| INTERFACES | Wi-Fi, RS232, USB | ||||||
| DIMENSIONS & WEIGHT | Main unit: 22” x 14” x 9”; 30 lbs. | ||||||
| ENVIRONMENTAL |
Opera ng temp: -20o to 60oC Storage temp.: -40o to 75oC Humidity: 5 to 100% |
||||||
| Please see full technical Data sheet for details. | |||||||
