房屋检修工具挑选FLIR ONE Edge Pro\FLIR C5\FLIR E8Pro热像仪，文章来源于菲力尔，随着时间的推移，任何建筑都会有不同程度上的磨损，因此会面临隔热能力退化、水分侵入和湿气损坏等。房屋检修不仅可以节约能源成本还可以让房主住的更安心，FLIR产品可满足您的各种检测需求，隔热层缺失、湿气渗入、虫害入侵，这些问题初期一般发生在墙体内，很难被发现。幸好随着技术的进步，能看见温差的热成像技术已广泛应用在建筑墙体检测、地暖管道检查和空调能耗排查等，尽早发现能源泄漏的问题，每年约可以节省高达20%的能源费用。即使没有经过任何培训的用户，也能用FLIR红外热像仪清楚地查看家庭或商业建筑中需要关注的地方。那么，热像仪能检测房屋建筑中的哪些能源流失的隐患呢？Home Inspection Tools Pick FLIR ONE Edge Pro\FLIR C5\FLIR E8Pro Thermal Imaging Cameras, an article from FLIR, Over time, any building will experience varying degrees of wear and tear and therefore face degradation of insulation, moisture intrusion and moisture damage. A home inspection not only saves energy costs but also gives homeowners peace of mind, and FLIR products are available for a variety of inspection needs. Missing insulation, moisture intrusion, and pest invasion, which initially typically occur within the walls, can be difficult to detect. Fortunately, with advances in technology, thermal imaging technology that can see temperature differences has been widely used in building wall inspections, underfloor heating duct inspections and air conditioning energy consumption troubleshooting, etc. Early detection of energy leaks can save up to 20% of energy costs annually. Even untrained users can use a FLIR thermal imaging camera to get a clear view of areas of concern in a home or commercial building. So what are some of the hidden dangers of energy loss in a home building that a thermal imaging camera can detect?

查找隔热层缺失 (Finding Missing Insulation)

隔热层缺失检测的第一个地方是门窗周围的防风雨条，门窗往往是能源损失的常见问题区域，无论是旧的、分解的密封件还是不良的原始安装。随着室外天气变冷，剥离材料往往会收缩，留下足够大的间隙供空气流动，使供暖或暖通空调系统的运行变得比应有的更困难。及时发现剥离材料不良可以让你提前为寒冬做好准备，并专注于维护可能造成最大热量损失的门窗。The first place to look for missing insulation detection is the weather stripping around windows and doors, which tend to be common problem areas for energy loss, whether it's old, disintegrating seals or poor original installation. As the weather gets colder outside, the stripping material tends to shrink, leaving large enough gaps for air to flow through, making it more difficult than it should be for the heating or HVAC system to operate. Timely detection of poor stripping material allows you to prepare for the cold winter ahead of time and focus on maintaining the windows and doors that may be causing the most heat loss.

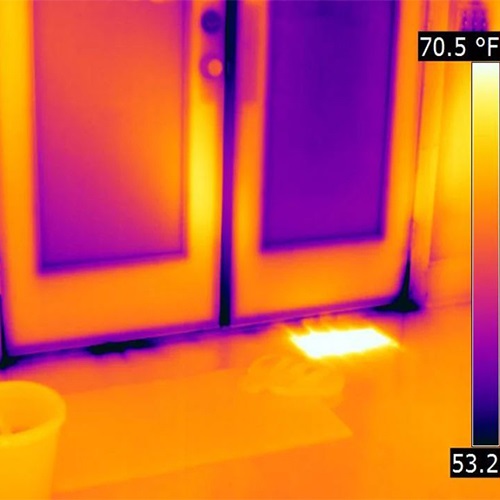

冷空气透过防风雨条进入室内

热像仪对于检测隔热层缺失或隔热材料偏移的漏洞特别有用。墙体保温性能退化有许多潜在原因：比如随着时间的推移，害虫可能会进入移动的材料中，或者湿气会使其变重。无论是什么原因导致隔热不良，在开始维修之前，您都需要先找到它们。当建筑物内外温差为6°C时，您可以立即发现隔热不良的地方。Thermal imaging cameras are particularly useful for detecting holes in missing insulation or offset insulation. There are a number of potential reasons for degradation of wall insulation: for example, pests may get into the moving material over time, or moisture may weigh it down. Whatever the causes of poor insulation, you need to find them before you start repairs. When the temperature difference between the inside and outside of a building is 6°C, you can spot poor insulation immediately.

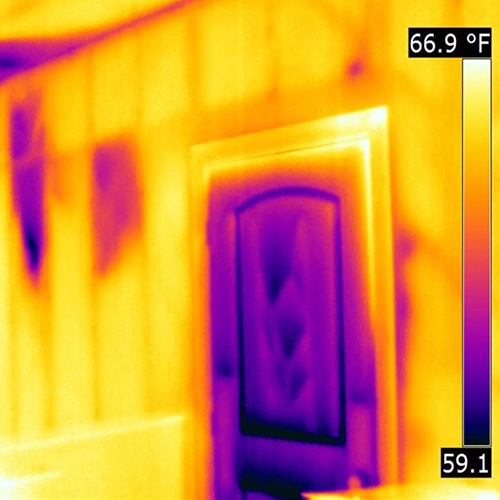

缺少隔热材料，在热图像上以紫色突出显示

热像仪也非常适合在安装隔热材料时进行双重检查工作。在下图中，隔热接缝起初充分填充，但热像仪镜头下显示仍有空气流动。Thermal imaging cameras are also well suited for double-checking work when installing insulation. In the picture below, the insulation joints are initially well filled, but the camera lens shows that air is still flowing.

定位湿气 (Locating Moisture)

湿气泄漏到建筑物中，与空气泄漏一样，很可能会导致冷点的出现，在热像仪的镜头下同样可以检测到。众所周知，提前检测到房屋中的水分对于房屋的健康状况非常重要！浴室、厨房、洗衣房、地下室、阁楼和外墙都经常暴露在潮湿环境中，因此很容易因长期潮湿而受损。湿气可以通过外墙裂缝、管道泄漏、暖通空调系统故障、冷凝水等途径进入。所有这些都可能导致霉菌生长，从而导致结构损坏和健康问题。如果房主可以在维修成本高昂（湿气造成房屋严重损坏）之前，检查潜在的问题区域并进行有效干预，那将既节约了时间，又减少了成本。红外热像仪非常适合检测水损坏的迹象，但不应单独用于检查。湿度计应与热像仪结合使用，才能更准确测量水分的存在。比如FLIR MR265——将热像仪和水分测量功能集于一身，可以轻松实现彻底检测。Moisture leaks into a building are just as likely to cause cold spots as air leaks, and can be detected just as well under the lens of a thermal imaging camera. It is well known that detecting moisture in a home ahead of time is important to the health of the home! Bathrooms, kitchens, laundry rooms, basements, attics, and exterior walls are all constantly exposed to moisture and are therefore susceptible to damage from prolonged moisture. Moisture can enter through cracks in exterior walls, plumbing leaks, HVAC system malfunctions, condensation, and more. All of these can lead to mold growth, which can lead to structural damage and health problems. If a homeowner can inspect potential problem areas and intervene effectively before repairs become costly (and moisture causes serious damage to the home), it will save both time and costs. Thermal imaging cameras are great for detecting signs of water damage, but should not be used alone for inspections. A hygrometer should be used in conjunction with a thermal imaging camera to more accurately measure the presence of water. For example, the FLIR MR265 - which combines a thermal imaging camera and moisture measurement in one unit - makes it easy to achieve a thorough inspection.

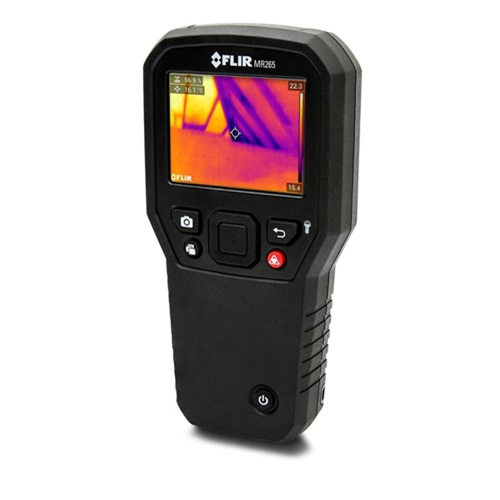

FLIR MR265提供热像仪和无针湿度检测

如何挑选房屋检修工具 (How to Pick a Home Inspection Tool)

要进行有效的房屋或建筑物检查，您需要使用合适的工具。FLIR产品种类繁多，适合各种用途。无论您是新房主、专业检查员，还是介于两者之间的人，FLIR都有适合你经验水平的专业设备。To conduct an effective home or building inspection, you need to use the right tools.FLIR has a wide range of products for every purpose. Whether you're a new homeowner, a professional inspector, or someone in between, FLIR has specialized equipment for your experience level.

FLIR ONE Edge Pro热像仪 (FLIR ONE Edge Pro Thermal Imaging Camera)

这款小型热像仪可无线连接智能设备，让您可以随时拥有强大的热成像视觉。FLIR ONE Edge Pro热像仪同时提供和可见光相机，搭配VividIR™功能（一种先进的图像处理功能，包括组合多个图像以获取更多热数据），热图像增强了细节展示，因此用户可以快速定位漏气和湿气等问题，例如缺少隔热材料或其他房屋常见问题，包括水分入侵或藏在墙壁、屋顶甚至壁板上的常见害虫等。This compact camera connects wirelessly to smart devices so you can have powerful thermal imaging vision at your fingertips.The FLIR ONE Edge Pro offers both a thermal and a visible light camera, and with the VividIR™ feature, an advanced image processing feature that involves combining multiple images for more thermal data, the thermal images enhance the display of details so users can quickly locate air leaks and moisture issues such as lack of insulation or other common house problems including moisture intrusion or common pests hiding in walls, roofs and even siding.

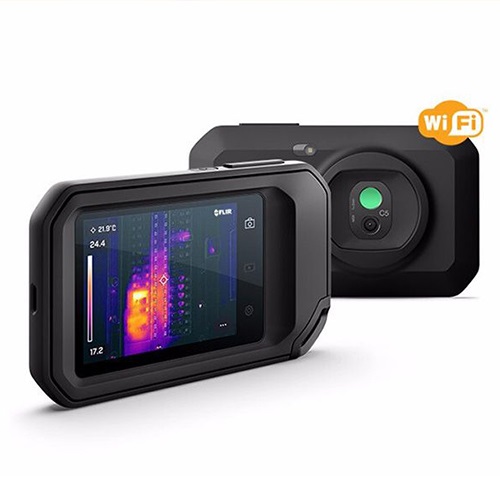

FLIR C5红外热像仪 (FLIR C5 thermal imaging camera)

FLIR C5红外热像仪是一款坚固耐用的袖珍型红外热像仪，它能够检查房屋中的热保险丝、空气泄漏、管道问题等，特别适用于检查老旧、能源效率低下的房屋。这款热像仪配备一键式电平/跨度区域调节功能，测温范围为-20至400°C，可承受从两米处跌落， 防护等级为IP54，可抵御灰尘、污垢和恶劣天气。FLIR C5还提供FLIR Ignite云连接功能，让您可以在线存储和整理图像，方便分享与访问检测结果。The FLIR C5 is a rugged, pocket-sized thermal imaging camera that checks houses for thermal fuses, air leaks, plumbing problems and more, making it ideal for inspecting older, energy-inefficient houses. Featuring one-button level/span area adjustment, a temperature range of -20 to 400°C, protection from drops of up to two meters, and IP54 protection against dust, dirt, and inclement weather, the FLIR C5 also offers FLIR Ignite cloud connectivity, which lets you store and organize your images online for easy sharing and accessing of inspection results.

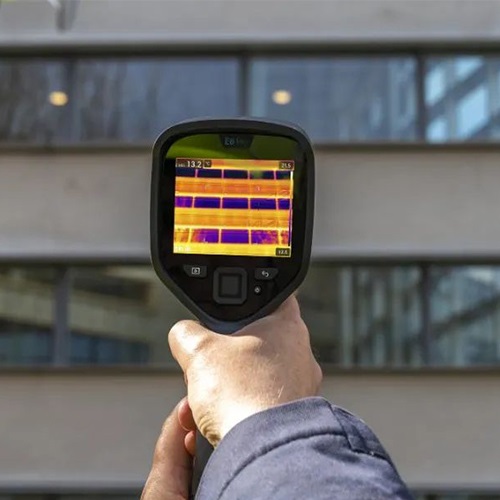

FLIR  E8Pro热像仪 (FLIR E8-Pro Thermal Imaging Camera)

FLIR E8Pro热像仪非常适合专业检查员诊断电气、机械和建筑问题。该系列热像仪配备320×240像素的热探测器，通过全新的屏幕注释功能突出关键检测结果，与FLIR Ignite完全兼容，可将拍摄的检测结果编辑、存储和组织，或与同事、合作伙伴或客户轻松共享。有了它，用户能够在潜在问题成为故障之前定位问题所在，使维修团队及时修正，降低维修资金和时间成本。FLIR E8 Pro thermal imaging cameras are perfect for professional inspectors to diagnose electrical, mechanical and construction problems. Featuring a 320 x 240 pixel thermal detector, this series of cameras highlights key inspection results with new on-screen annotation features and is fully compatible with FLIR Ignite, allowing captured inspection results to be edited, stored and organized, or easily shared with colleagues, partners or customers. With it, users are able to pinpoint potential problems before they become failures, allowing maintenance teams to correct them in a timely manner, reducing the cost of repairs in both money and time.
