电气运维高手使用Fluke319钳表低通滤波器LPF实现变频设备精准测量
电气运维高手使用Fluke319钳表低通滤波器LPF实现变频设备精准测量，文章来源于福禄克公司。随着更为广泛的工业环境，特别是越来越多的变频、整流器、逆变器等设备的使用，实际的波形越来越多样化，甚至引入了越来越多的高频噪声。因此要对这些设备准确测量，真有效值成为其中重要的因素之一。提到噪声或着谐波，不得不说另外一个重要的概念：低通滤波器(LPF)。言下之意，只有低频电流电压才能被测算，高频的部分就会被截至不予计算。可以说，只有具备了低通滤波的真有效值钳表，才是真正有价值的‘真有效值’。福禄克钳表的明星型号F317 /319真有效值交直流钳表，则内置了800-900Hz低通滤波器。这两点的加持使得F317/319可以轻松搞定复杂变频电气设备，同时克服各种恶劣强干扰环境，保证测试数据的精准与稳定性。
Electrical O&M "Old Driver" Uses F319 Clamp Meter to Achieve Accurate Measurement of Inverter Devices, Article from Fluke, Inc. With the use of more and more devices in a wider range of industrial environments, especially frequency converters, rectifiers, inverters, etc., the actual waveforms are becoming more and more diverse, and even introducing more and more high-frequency noise. Therefore to measure these devices accurately, the True RMS becomes one of the important factors. When it comes to noise or harmonics, another important concept has to be mentioned: the low pass filter (LPF). This means that only low-frequency currents and voltages can be measured, while higher frequencies are not counted. It can be said that only a true RMS clamp meter with low-pass filtering is really worth its weight in 'true RMS'.The F317 /319 True RMS AC/DC Clamp Meter, Fluke's star model, has a built-in 800-900Hz low-pass filter. The addition of these two points makes the F317/319 can easily handle complex frequency conversion electrical equipment, while overcoming a variety of harsh and strong interference environment to ensure the accuracy and stability of test data.
|
本次文章小福为大家分享一个资深工程师的319现场应用案例：
李工 电气运维老司机
用319的各种功能，高效完成变频器等较复杂环境的测量
变频恒压供水配电柜
This article Xiaofu share a senior engineer's 319 field application case:
Mr. Li Gong Electrical Operation and Maintenance Veteran Driver
Use the various functions of 319 to efficiently complete the measurement of more complex environments, such as inverter
Frequency conversion constant pressure water supply distribution cabinet
|

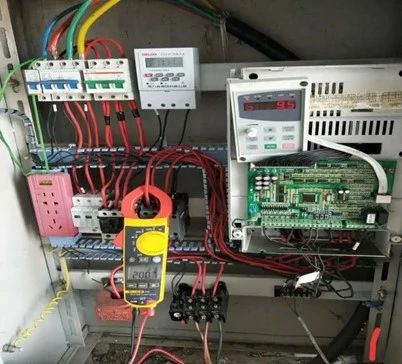

原来维修变频器的配电柜，测量变频器的输出电压，普通数字万用表显示数值不停的跳动，所以需要另带一台指针万用表，给工作带来很多麻烦，Fluke 319钳表，具有真有效值功能，可以测理变频器输出电压和水泵（电机）的工作电流，非常方便快捷，测量数据更准确，真真正正的做到一机在手，工作无忧！
The original maintenance of the frequency converter distribution cabinet, measuring the output voltage of the frequency converter, ordinary digital multimeter display values keep jumping, so you need to bring another pointer multimeter, bringing a lot of trouble to the work, Fluke 319 clamp meter, with true RMS function, you can measure the output voltage of the frequency converter and the working current of the pump (motor), it's very convenient, quick and accurate measurement of the data, and it's really a machine in the hands of the work without worry!
The original maintenance of the frequency converter distribution cabinet, measuring the output voltage of the frequency converter, ordinary digital multimeter display values keep jumping, so you need to bring another pointer multimeter, bringing a lot of trouble to the work, Fluke 319 clamp meter, with true RMS function, you can measure the output voltage of the frequency converter and the working current of the pump (motor), it's very convenient, quick and accurate measurement of the data, and it's really a machine in the hands of the work without worry!
电机的启动电流测试功能

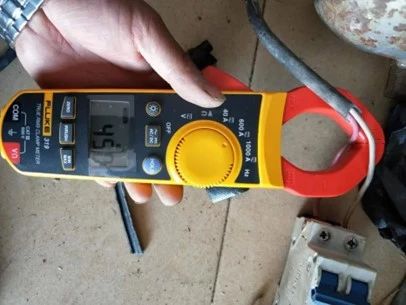

Fluke 319钳表能在实际的电机维修工作中，确实快速的读出电机启动电流，给维修判断故障提高工作效率，这是普通钳表做不到的，这是与众不同的地方。
Motor start-up current test function, Fluke 319 clamp meter can be in the actual motor maintenance work, really fast read out the motor start-up current, to the maintenance of judgment fault to improve efficiency, which is ordinary clamp meter can not do, this is the place of difference.
Motor start-up current test function, Fluke 319 clamp meter can be in the actual motor maintenance work, really fast read out the motor start-up current, to the maintenance of judgment fault to improve efficiency, which is ordinary clamp meter can not do, this is the place of difference.
使用感受
在使用Fluke 319钳表的过程中，深深感受到福禄克真的效值测量功能的真实性和实用性，让我们有真实数据的依靠，从面更精准快速判断问题所在之处，这是我们维修核心，方便快捷准确安全，是福禄克带给我们不一样的感受，使我们热爱工作，更加热爱福禄克，它是我们维修电工的得力助手。
Feelings,In the process of using Fluke 319 clamp table, deeply feel the authenticity and practicality of Fluke really effective value measurement function, so that we have real data to rely on, from the surface of a more accurate and rapid judgment of the problem where it is, which is the core of our maintenance, convenient, fast, accurate and safe, is the Fluke to bring us a different feeling, so that we love the work, more love Fluke, it is our maintenance electrician's It is our maintenance electrician's right-hand man.
